1.1.1.2.2. PARTdesigner 1.1.1.2.2.4. Cutting Plane
Adjustable with specified distance and angle |  |
| Prev | Next |

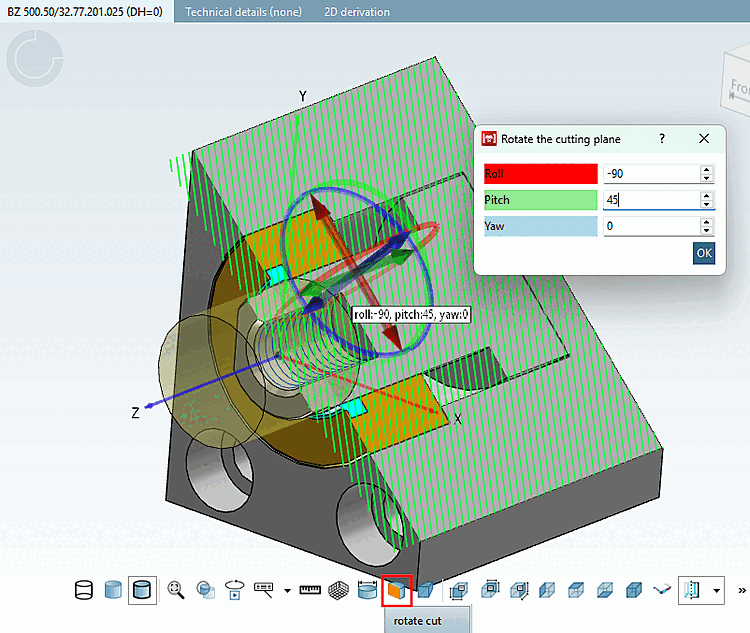

The operation of the cutting plane has been improved. The angle and position can now be set more precisely using numeric input fields. In addition, a dialog box for directly editing the angles has been added.
| Roll | Rotation around the longitudinal axis (X) |
| Pitch | Rotation around the transverse axis (Y) |
| Pitch | Rotation around the vertical axis (Z) |
