1.1.1.2.2.5. 3D View: Cross-section with hatching

In the 3D view, no grid was displayed in cut mode until now.

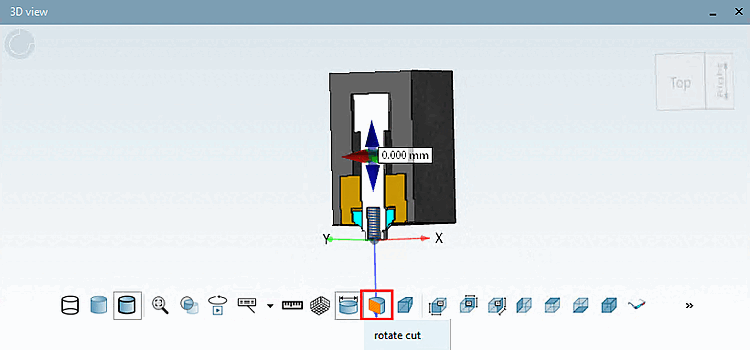

Cross-sectional plane without hatching

Cross-sectional plane without hatching

With V12.14, the cut plane can now also be displayed with hatching.

In the PARTdesigner settings dialog, you can make specific adjustments .

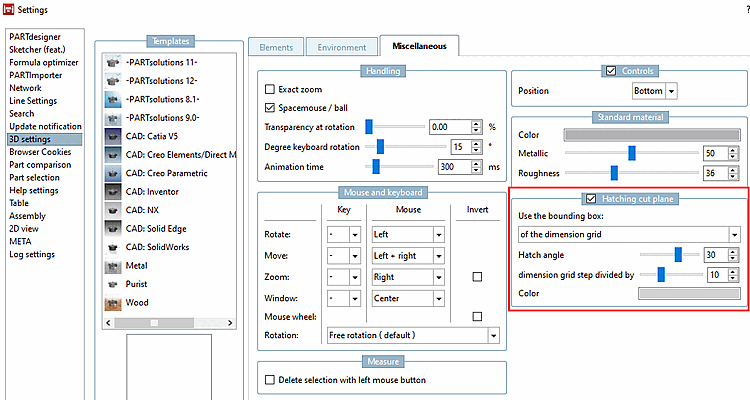

PARTdesigner > Tools [Extras] Menu > Settings... > 3D Settings [3D settings] > Hatching Cut Plane [Hatching cut plane]

PARTdesigner > Tools [Extras] Menu > Settings... > 3D Settings [3D settings] > Hatching Cut Plane [Hatching cut plane]

Hatch Cut Plane [Hatching cut plane]: Enabled / Disabled

  • Use a border [Use the bounding box] from

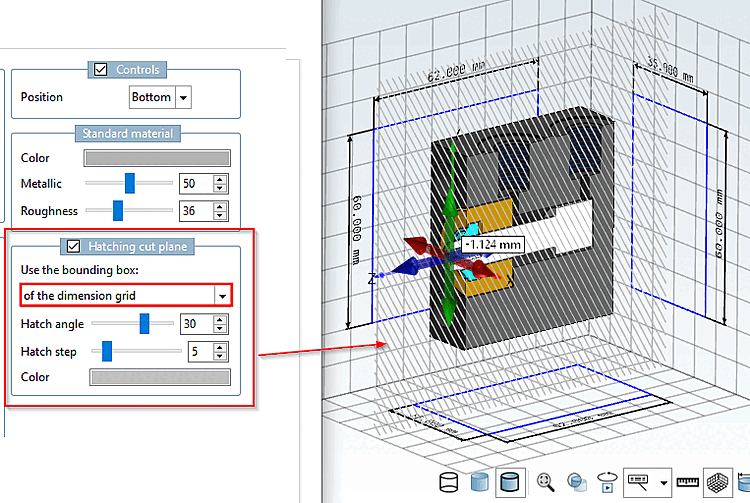

    • Dimensioning Grid

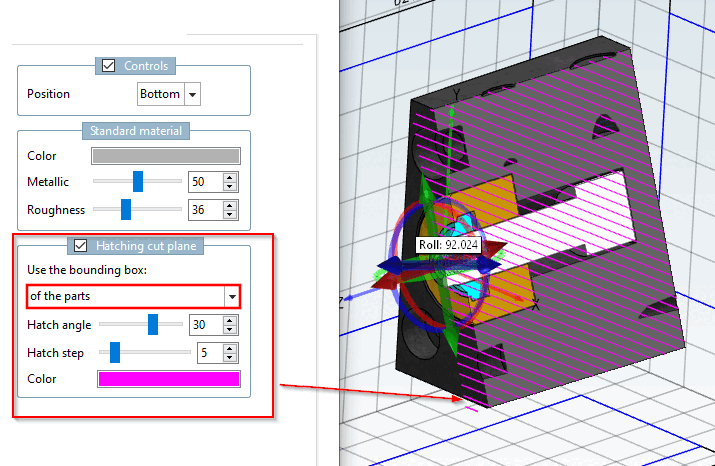

    • Part

  • Hatch angle

  • Hatching Spacing

  • Color
