2.1.16.6.2.4. Context menu commands in the "Technical specifications " docking window

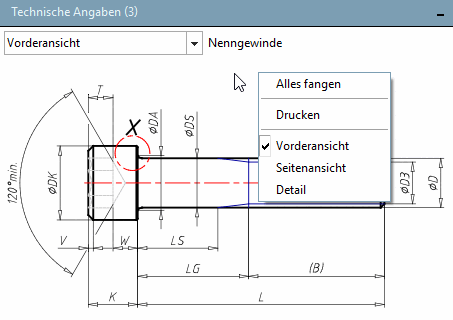

Context menu: Individual part [Single part] - Technical data [Technical details]

Context menu: Individual part [Single part] - Technical data [Technical details]

  • Zoom all

    With Snap all [Zoom all], you can bring the display of the component to a balanced size. The component is visible large enough, but does not protrude beyond the 3D view window when rotated. If the Exact zoom [Explicit zoom] option option is set (see Section 1.3.5.4.1, “ Operation ” in ENTERPRISE 3Dfindit (Professional) - Administration ), the display within the window is enlarged to the maximum.

  • Print

    You have the option of creating a printout of the 3D view of the component/assembly.

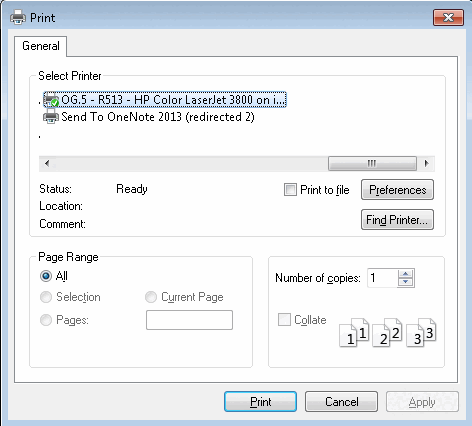

    When clicking on the command the respective settings dialog box of your operation system opens.

  • Different technical views (if available)
