1.6.1.5.  Insert model - Pattern recognition

If there are patterns in the placement section, they are recognized and a corresponding dialog box appears.

Initial situation: After you have placed the placement part to the CAD system using Transfer Transfer to CAD [Transfer to CAD], the view switches back to CAD and the placement dialog opens.

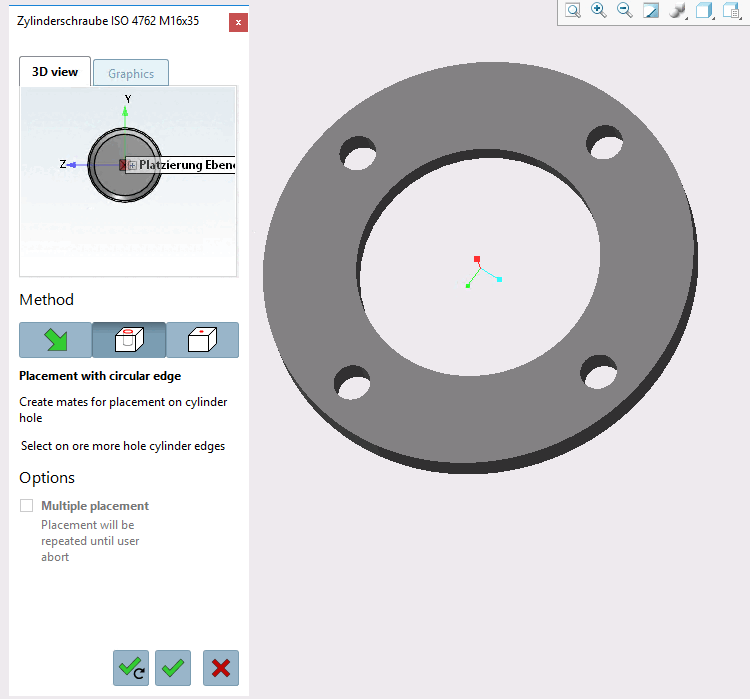

The 3Dfindit placement dialog box opens .

The 3Dfindit placement dialog box opens .

  1. Click the In Hole [In hole] button.

  2. Select one or more holes.

    A hole is selected

    A hole is selected

  3. Confirm by clicking OK.

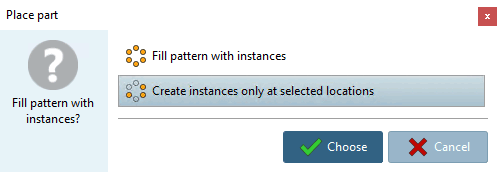

    -> The " Place Component [Place part] " dialog box [Place part] appears with the prompt "Do you want to fill the pattern with instances?"

    You now have two options:

    • The pattern with instances fill [Fill pattern with instances]

    • Create instances only at selected positions [Create instances only at selected locations]

    Click the Select [Choose] button.

  4. Click the Place Multiple [Place multiple] button (dialog remains open at the end) or Place Once [Place once] button.

    -> The desired instances are placed.

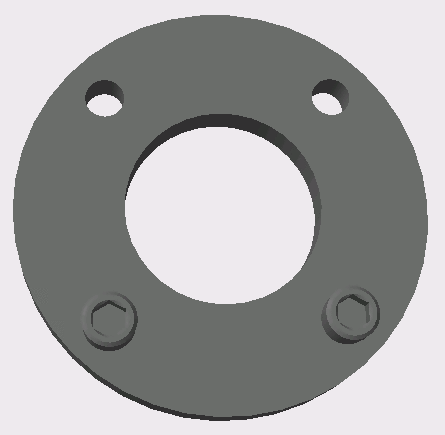

    Instances only at selected positions

    Instances only at selected positions

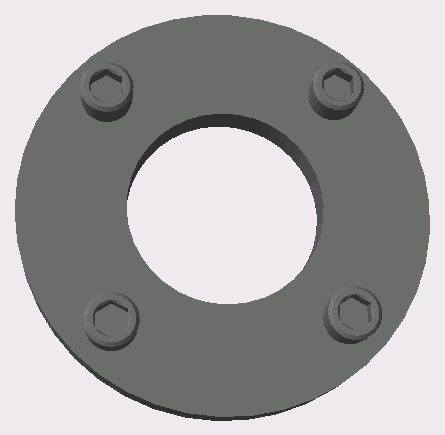

    All instances are full

    All instances are full

  5. If necessary, close the 3Dfindit Close the placement dialog using the dialog [Close dialog] .
