7.9.3.14.4.  Attributes -> Insert hatch

Toolbar "Attributes" -> Hatching

Toolbar "Attributes" -> Hatching

[Note]Note

Only available in Drawing mode.

Insert hatch

  1. Mark the plane to be hatched by pulling a frame around it with held down Shift key and mouse button.

  2. Click on the button.

  3. In the docking window Edit element, adjust Angle (value 0 stands for 45°!) and Grid size (distance of hatch lines).

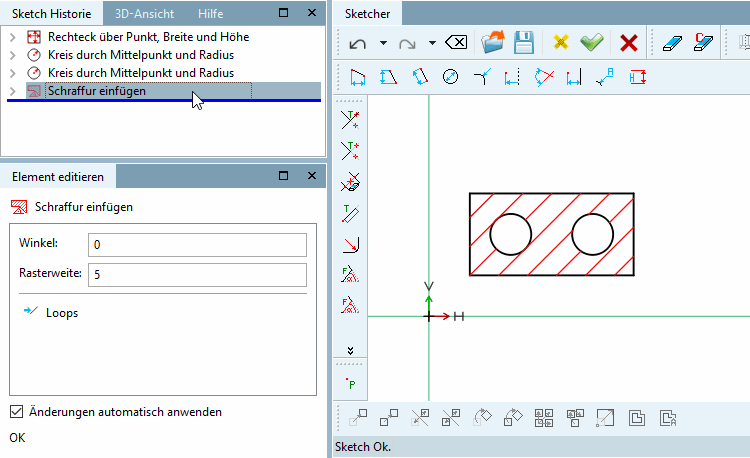

Part with hatch

Part with hatch

[Note]Note

Only closed elements can be hatched.
