8.1.1. Search templates: Possibility to define role-dependent search templates

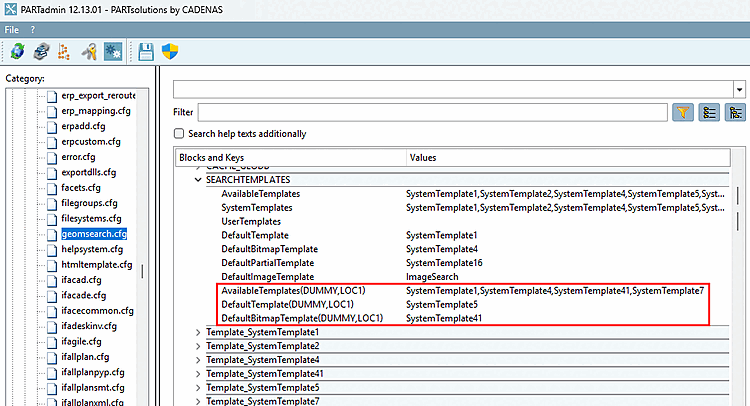

In the configuration file geomsearch.cfg, in the SEARCHTEMPLATES block, the setting can be set to Search templates can now also be role-dependent. [67]

  • AvailabeTemplates: Listing of all available templates

  • Default template: Template for the 3D search

  • DefaultBitmap: Template for the 2D search

    [Note]Note

    No selection option is offered in 3Dfindit. SystemTemplate4 is always used.

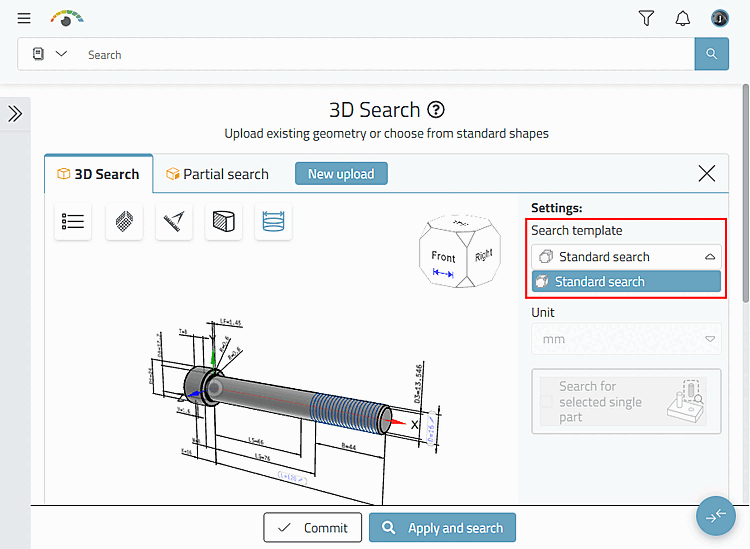

Example of 3D search [3D Search] in 3Dfindit:

Only one template can be selected here as an example.

Only one template can be selected here as an example.



[67] #155919
