1.4.1.5. Check result

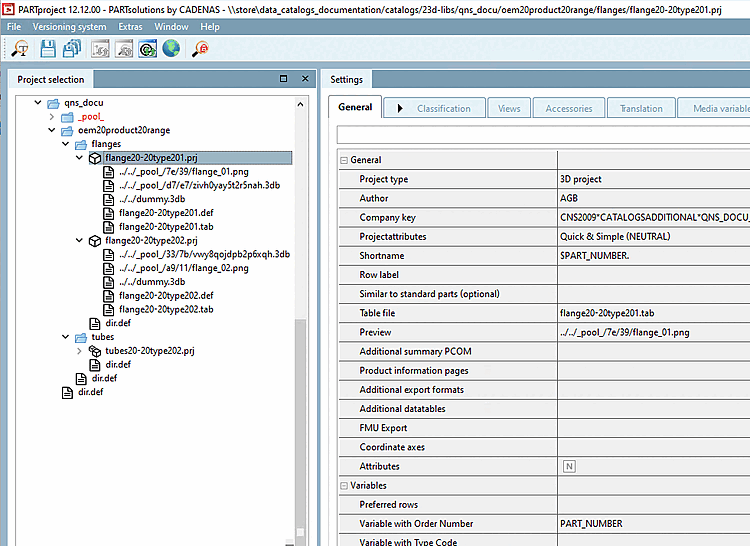

  • Switch to PARTproject.

    Check whether the data entered, e.g. author [Author], short name [Shortname] or variable with order number [Variable with order number], is displayed.

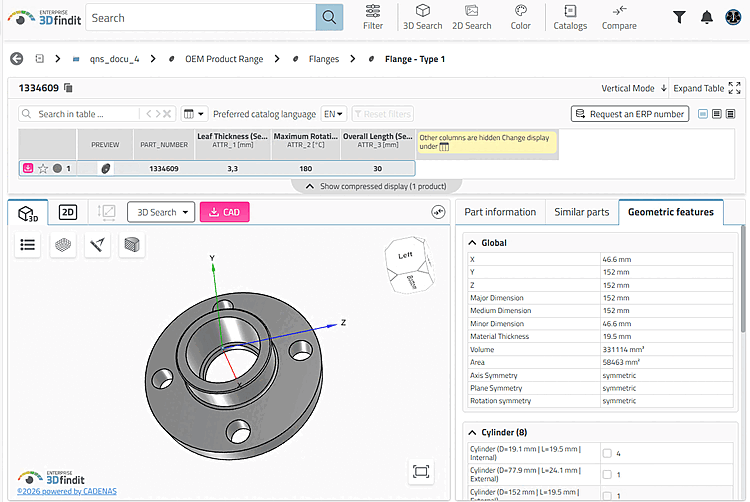

  • Switch to 3Dfindit.

    The table attributes and also the topological/geometric information have been adopted.
