3.1.7.6.8. Part designation (Standard name [NB] / BOM name [LINA])

The part designation can be found as (Standard name [NB] and BOM name [LINA]):

  • The Standard name [NB] is displayed in the 3D docking window.[87]

  • The BOM name [LINA] is displayed above the table and in the docking window Bill of material.[88]In contrast to the Standard name, a Function attribute (such as rod position for example) is not part of the LINA.

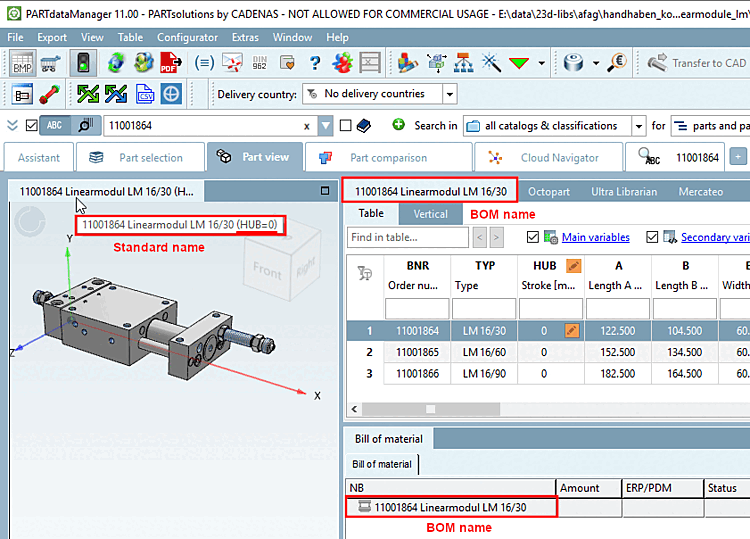

Part designation: 3D view -> Standard name [NB] | Table -> BOM name [LINA] | Docking window "Bill of material" -> "BOM name" [LINA]

Part designation: 3D view -> Standard name [NB] | Table -> BOM name [LINA] | Docking window "Bill of material" -> "BOM name" [LINA]



[87] The display is according to manufacturer's information.

[88] The display is according to manufacturer's information.
