The right 2D format for everyone

Make your customer the king

It is often overlooked that 2D drawings are mandatory for production drawings and diagrams.

When downloading DWG / DXF data, time-consuming rework and multiple downloading processes are often necessary:
As opposed to 3D data, there are no standards for 2D drawings regarding levels, colors, line types, and names, etc.

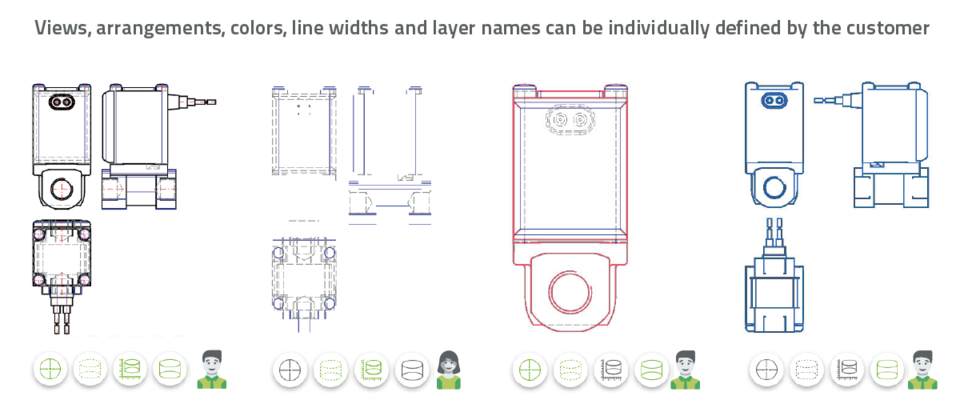

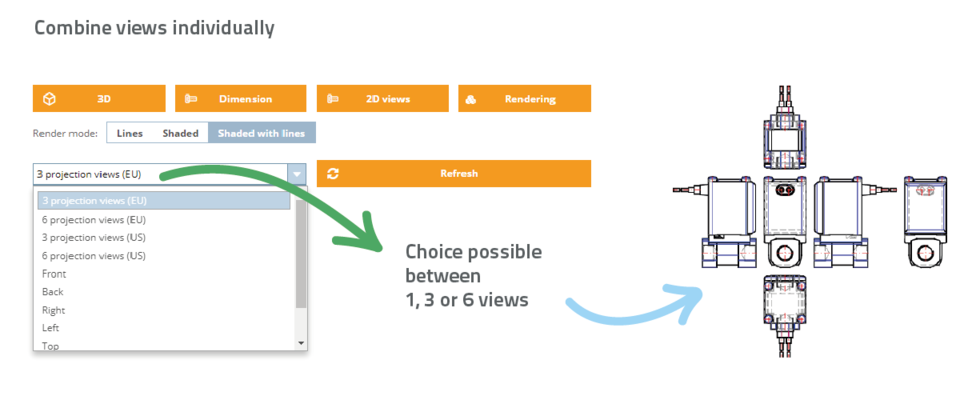

With eCATALOGsolutions by CADENAS, you enable your customers and prospects to create a 2D derivative, which meets the needs in terms of line strength, line colors, views, etc. and can be individually configured - just like with a 3D CAD system. This personal configuration for 2D derivatives will be automatically available for future downloads.
