Your existing 3D STEP / CAD data combined with
CADENAS technology brings you 20 new possibilities
Important information for electrical engineering & electronics
In the area of electrical engineering, not only the 3D outer contour of a component is significant: When selecting the suitable component, engineers require additional technical information such as for connections, environmental guidelines (e. g.: RoHS, REACH), end of life information or modification notices.

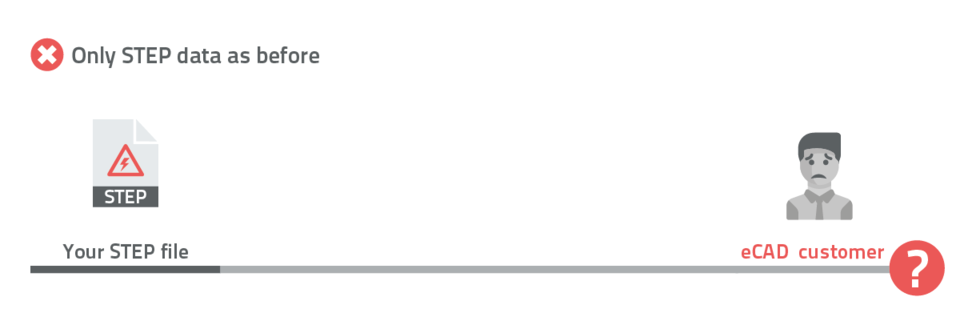

STEP data does not contain any attributes. This information can possibly be retrieved on your website, however, they are not taken over into the design automatically when downloading 2D/3D engineering data and are not available to the engineer without effort.

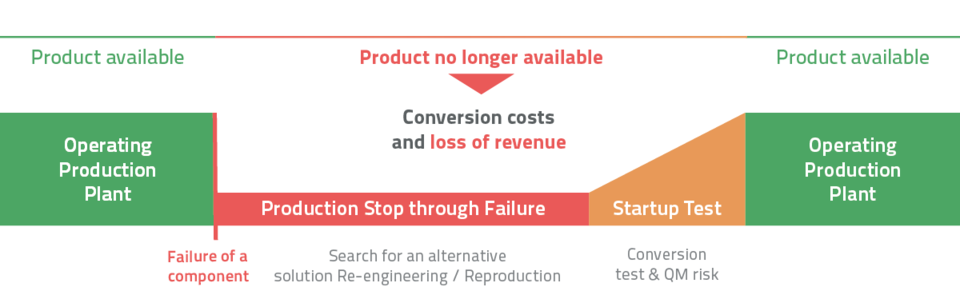

The impact of unexpected obsolescence through missing attributes such as end-of-life/obsolescence and feedback from the manufacturer

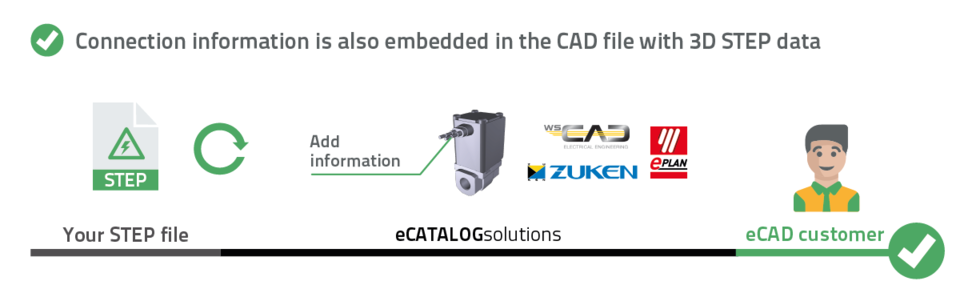

With eCATALOGsolutions you can add additional information to your 3D STEP data, embedded in a native CAD format. Well-known CAD systems for electrical engineering and the electronics sector are supported as well as eCL@ss ADVANCED format, with a market coverage of over 95 %.
