Editable 3D dimensioning

With PARTcommunity technology, the dimensions of a component can be displayed not only in a classic table, but also directly in the preview window of the 3D view.

Editable dimensioning in 3D view of CAD models on PARTcommunity

Change dimensions directly in 3D view

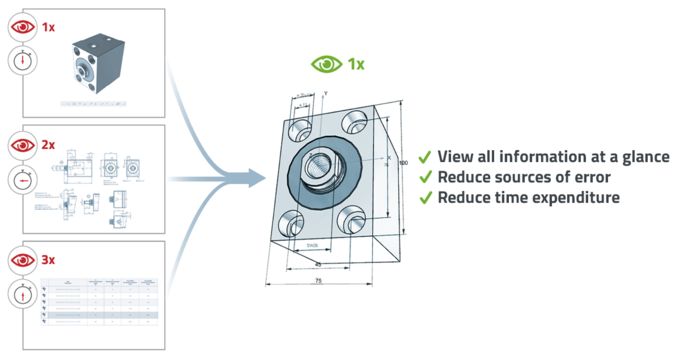

The dimensions of the part can be modified directly in the 3D view. This is indicated by icons, which the user can click on and then select the desired dimension. Further adjustment of the dimensions in the table is no longer necessary, as the information from the 3D view is automatically adopted.

Benefits for engineers, designers, architects & planners

  • Everything at a glance - no more jumping back and forth between views
  • Increased security through immediate verification of entered changes
  • Convenient, simple and time-saving use
Perfect 3D product data Seamless Integration
