6.2. Client-Server installation: Selective updates on client

Up to now server, client and even CAD version had to be the same when performing updates.

Now CADENAS_APPSERVER=https://appserver.domain.local?remoteSetup=0 as default allows for a complete PARTsolutions installation with updated interfaces and still use the Appserver completely without any unc shares and still have any modifications.[76]

CADENAS_APPSERVER (URL with parameters)

Syntax:

CADENAS_APPSERVER=https://<servername.domain>?<param1>=<value1>&<param2>=<value2>...

The following parameters are possible: (name,default value if not specified, meaning)

  • port=9020 => http port of the server

  • sslport=9022 => ssl port of the server

  • mzcomport=9021 => mzcom service port

  • mzcomsport=9023 => ssl mzcom service port

  • noproxy=1 => do not use proxy for access to the server

  • proxyAddr= => if specified, proxy address to use if noproxy=0

  • remoteFileSystem=1 => mount CADENAS_DATA via rfs from server

  • remoteSetup=0 (Default) => local CADENAS_SETUP | 1 => mount CADENAS_SETUP via rfs from server

  • remoteSiteSetup=1 => mount CADENAS_SITESETUP via rfs from server

  • remoteProgHelp=1 => mount CADENAS_PROGHELP via rfs from server

  • remoteDB=1 => use db connection remoting via appserver

  • remotepool=1 => mount $CADENAS_DATA/pool and $CADENAS_DATA/shared from appserver (if =0, they are placed in the local data directory)

  • writeable=1 => mount rfs in writable mode and let the server determine if writing is allowed... (if =0, all mounts are readonly...)

  • inethelp=0 => use locally installed help in $CADENAS_PROGHELP (either local or per mount via appserver), if =1, mount CADENAS_PROGHELP from webapi.partcommunity.com

  • httpCacheSize=5000 => size of the rfs cache in Mb ... default is a max of 5GB in $CADENAS_USER/rfs

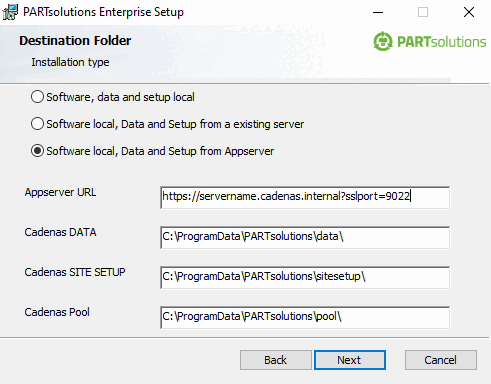

Appserver URL: Beispiel

Appserver URL: Beispiel



[76] #145993
