As of version 12.10, there is the option in 3Dfindit (not available for PARTdataManager ) to create a ML[1]-based photo search.
The photo search enables parts to be found more quickly, for example as part of spare parts management.
License requirement: The CNS2009*PSADDONS*PHOTOSEARCH license is required for the photo search.
Hardware requirements: In order to achieve an acceptable indexing and search speed, a powerful graphics card is absolutely essential. However, it is also possible to forward operations that require a graphics card to another computer.

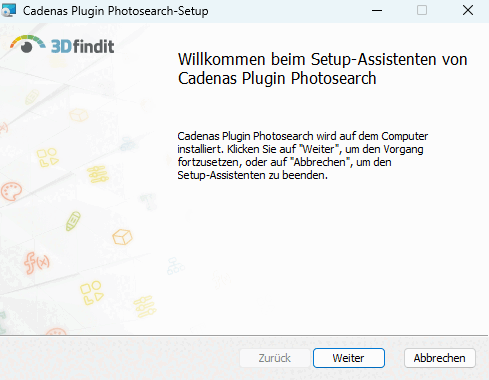

Installation: The additional functionality for the photo search is provided via plugins in the form of msi packages: psol_plugin_photosearch_<version>.msi, psol_plugin_machinelearning_cpu_<version>.msi and psol_plugin_machinelearning_gpu_<version>.msi.
![Index management [Index administration]: Tooltip shows that the "Photo search [Photo Search]" is indexed](https://webapi.partcommunity.com/service/help/latest/pages/en/3dfindit/doc/resources/img/img_528e6ceba79f4e17a3a166ffb44a2a3c.png)

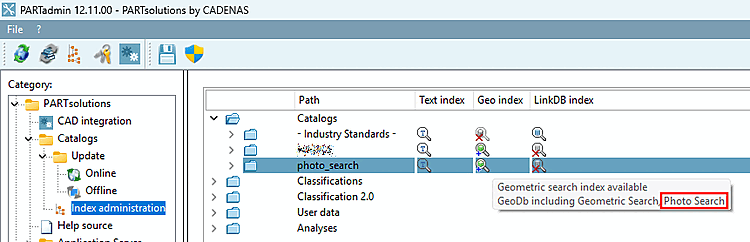

Index management [Index administration]: Tooltip shows that the "Photo search [Photo Search]" is indexed
Example of photo search in 3Dfindit:

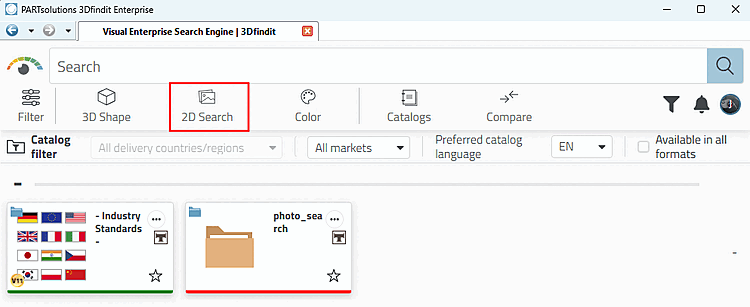

Open 3Dfindit and click on the 2D Search [2D search] icon.

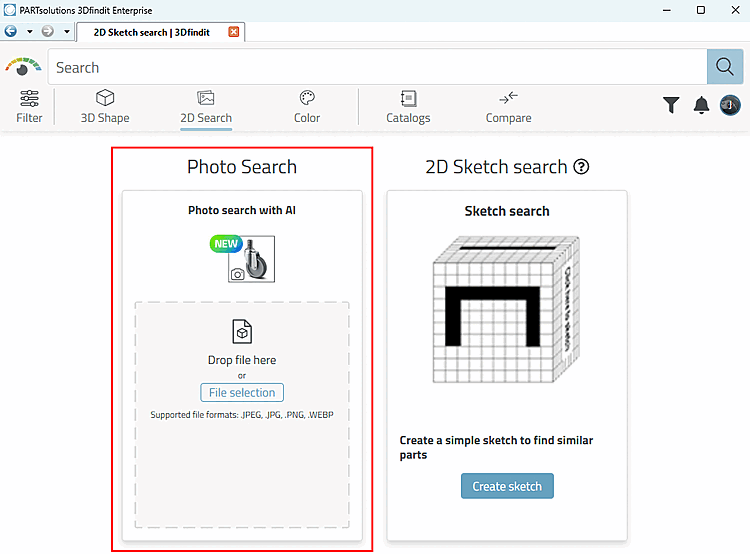

Click on the Photo search [Photo Search] dialog area and then select the desired image file in the Explorer or drag the photo file into the area.

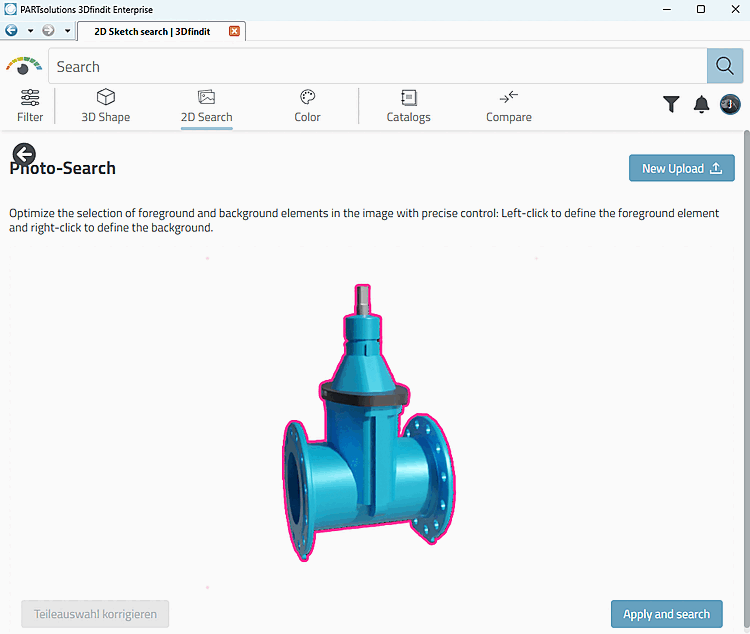

-> The photo is transferred to the dialog area.

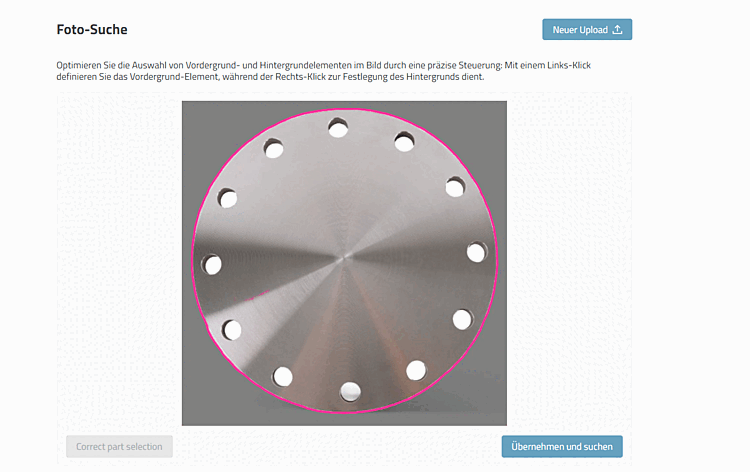

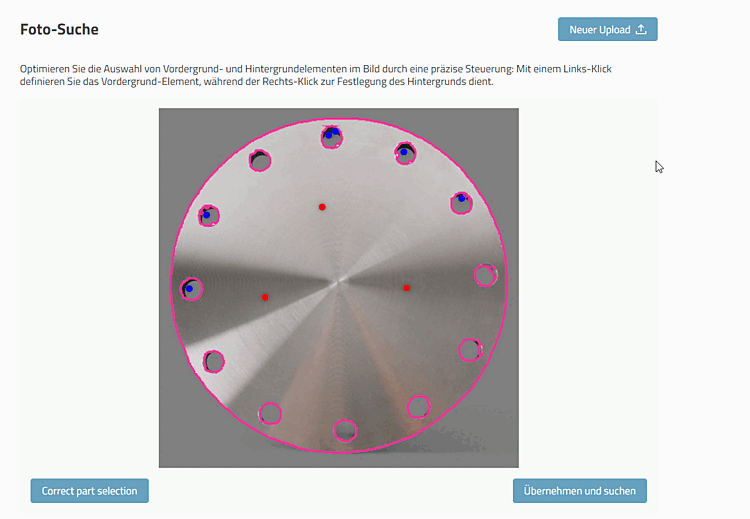

The background is initially determined automatically. In some cases, it makes sense to correct it afterwards by left-clicking on points that belong to the foreground and right-clicking on points that belong to the background.

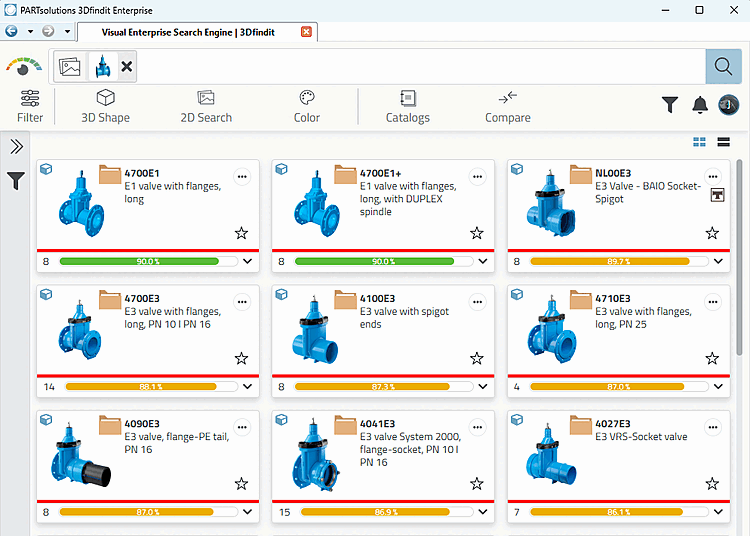

-> The search results are displayed as with any other search.
Details can be found under Section 4.22.6.9, “Photo search” in ENTERPRISE 3Dfindit (Professional) - Administration.
