Topology facets can now be created and configured. These are visible as an additional filter in the facets of 3Dfindit and PARTdataManager.

They can be combined with other facets as required and work for all searches from the geo-database as well as with the text search. If you do not explicitly use the geo-db, the topology facets will not work.

In the block settings in the topostructure.cfg you can choose any Create facets. These are the default values:

TopoFacets=MinorDim,MediumDim,MajorDim,Thickness

Für jeden Wert aus der Liste gibt es in der Datei direkt darunter einen Block, über den die Facette konfiguriert ist:

[TopoFacet_MinorDim]
attributeGroup=Part
attribute=MinorDim
DisplayName=Minor Dimension
MaxDistinctValues=10
DecimalPlaces=2
IconPath=$CADENAS_SETUP/bitmaps/topology/X.png
DefaultUnit=mm
MinValue=0
MaxValue=100000

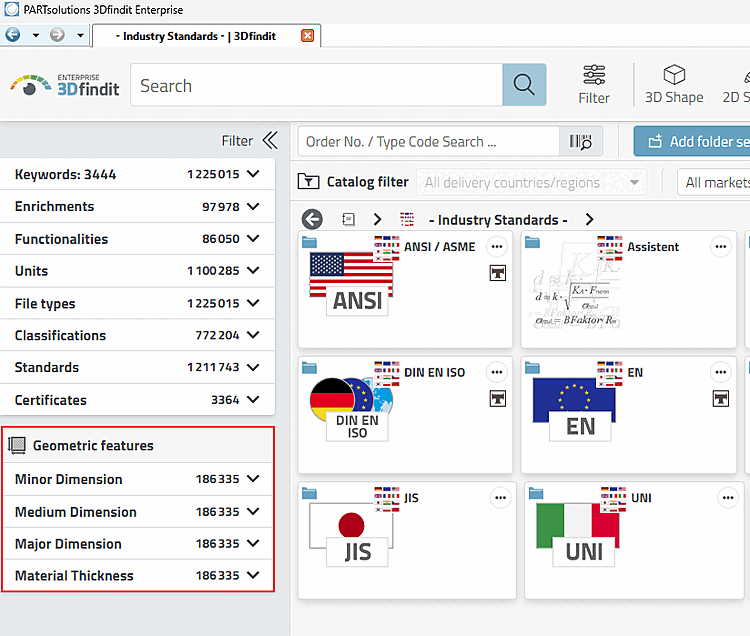

The following facets are therefore available by default:

You can find more about this in Section 1.7.5.22, “ topostructure.cfg - PARTdataManager / 3Dfindit: GeoDb topology search ” in ENTERPRISE 3Dfindit (Professional) - Administration
