1.3.4.6.6.  Settings

The setting options in the Geometric search (3D [Geometric search (3D)] ) dialog box are explained in more detail below:

  • Search template:

    • Standard search medium quality and speed

      Default search template for the 3D search which uses a lot of different algorithms.

      [Tip]Tip

      As a rule, you use the standard search [Standard search].

    • Comprehensive search [Broad search] lower speed

    • Search for profiles :

    • Duplicate search:

    [Note]Note

    For the creation of own search templates or special adjustments please only contact CADENAS Consulting, if needed.

  • Size-dependent search :

    Search either only shape-dependent (checkbox off) or size-dependent in addition (checkbox on).

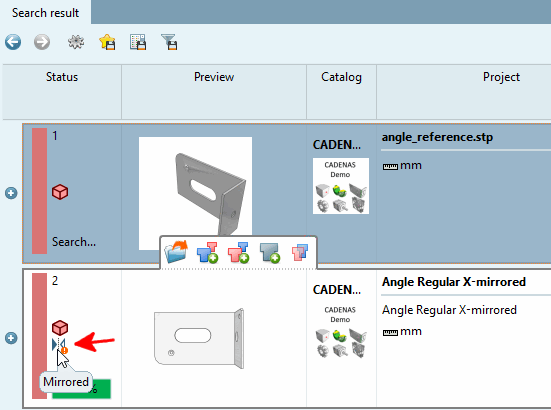

  • Filter [Filter mirrored parts] mirrored parts: If you activate this option, mirrored parts are filtered out. Mirrored parts are marked with a corresponding icon in the list of search results .

    Option disabled: Mirrored parts are not filtered, but marked with an icon.

    Option disabled: Mirrored parts are not filtered, but marked with an icon.
