General: Under ADDLOCAL, list all desired features separated by commas.

ADDLOCAL=Feature1,Feature2 ...

Example: PARTsolutions Enterprise and NX Integration are to be installed. The integration should also be activated immediately.

ADDLOCAL=F.apps_psol_enterprise,F.CAD_NX,F.AutoActivateInterfaces

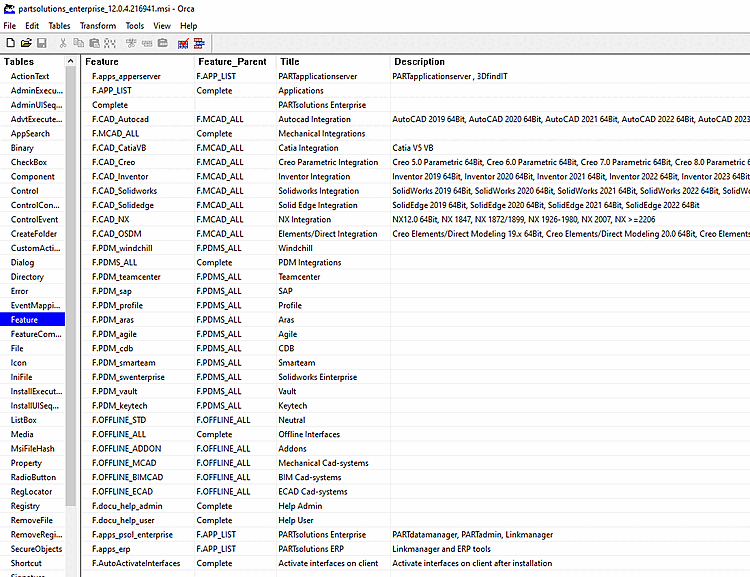

Following Orca table shows all features, which can be set under ADDLOCAL.

Table "Feature" in Orca

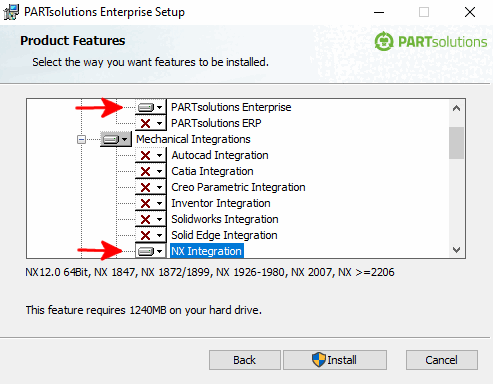

The following illustrations show the equivalents in the UI ( PARTsolutionsEnterprise, activate NX integration and interfaces on the client ).

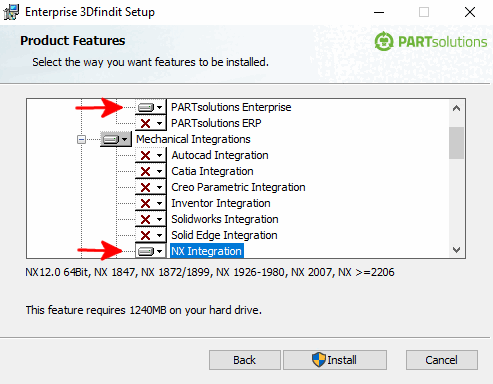

PARTsolutions Enterprise, NX Integration

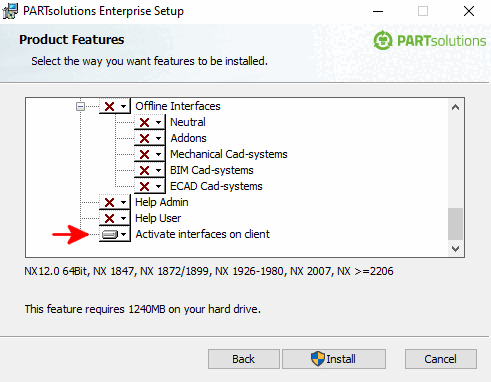

Enable interfaces on the client

Activate interfaces on the client [Enable interfaces on the client] (F.AutoActivateInterfaces): If the CAD systems are already installed, you save yourself a manual activation if you activate the option. In PARTadmin under the CAD integration category, you can also carry out the activation manually later. See also Section 1.3.2, “ CAD integration ”.

CAD integration " category

Batch scripts are available at ...\software\install\scripts, which can be executed locally at any time to activate/deactivate all integrations. These can also be used administratively in the course of software distribution with deployment.
