In the Quick comparison [Quick compare] column, you can see the proportion between the search part and the result part.

In the result part, the bounding box (three-dimensional envelope) of the search part is drawn in the 2D representations of the search results so that you can see the size ratio between the search part and the result part at a glance. You can see the exact values in the Size column next to it.

At the search part itself the bounding box is covering exactly. At bigger or smaller search result parts it is outside or inside.

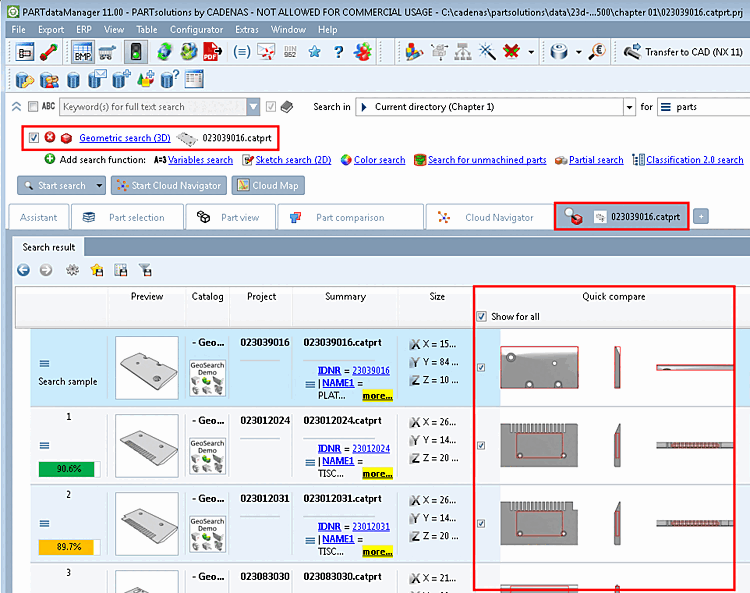

List of search results -> "Quick comparison [Quick compare] " column

The quick comparison [Quick compare] is not displayed by default. If you want to see this for all result parts, activate the Show for all checkbox in the Quick comparison [Quick compare] column, otherwise activate the checkbox directly for the desired parts. In the column header, you can call up the Select columns dialog via the context menu and switch the quick comparison [Quick compare] on or off there (see Section 1.3.7.2, “Show/hide columns ”).

In the 3D tooltip of the result list the bounding box^[30] of the search part is also displayed (analogously to the red bounding box in the 2D quick compare).

List of search results -> 3D tooltip

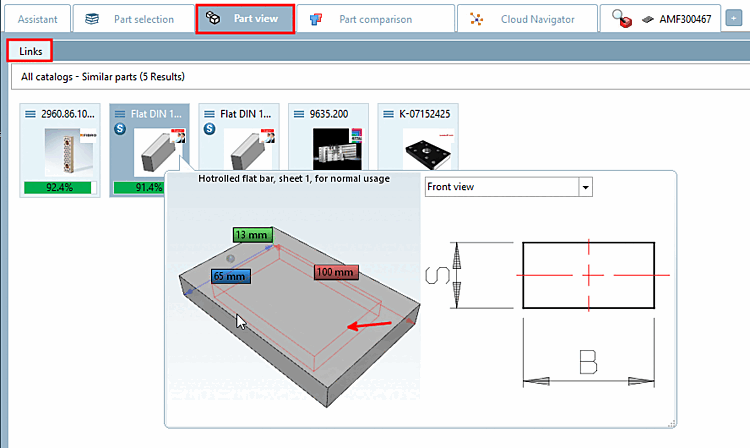

The bounding box of the quick comparison [Quick compare] is also displayed under Parts view [Part view] -> References [Links].

Parts view [Part view] -> References [Links]
