3.3.2.3.2. Minimal configuration enabling export
3.3.2.3.2.1. Mapping between .pax file entries and ifnxteamcenter.cfg
Prev  Next
3.3.2.3.2.1. Mapping between .pax file entries and ifnxteamcenter.cfg
[Note]Note

This description of a minimal configuration assumes that a simple template without mandatory Teamcenter properties is used. A complex example using mandatory properties can be found under Section 3.3.2.3.4.3, “Mandatory Teamcenter Properties”.

The customer has to provide the information which pax file and which entry in it is used.

On this base the mapping can be performed.

  1. Open the used pax file in an editor and in addition besides PARTadmin -> ifnxteamcenter.cfg -> Block "CreationOptions(is3d).

  2. In the configuration file ifnxteamcenter.cfg, enter the respective values from the pax file.

    [Note]Note

    The spelling has to match exactly the one in the pax file. Regard upper and lower case! Copy and paste is recommended!

    Keys:

    • TemplateName(isMMDoc)

    • TemplateName(isInchDoc)

    • TC_TemplatePresentationName

    • TC_TemplateApplicationName

    • TC_TargetItemType

    • TC_allowItemAltRep

      [Note]Note

      May be the entry is missing. Then the default value "false" is used automatically.

    PARTadmin <-> .pax file

    PARTadmin <-> .pax file

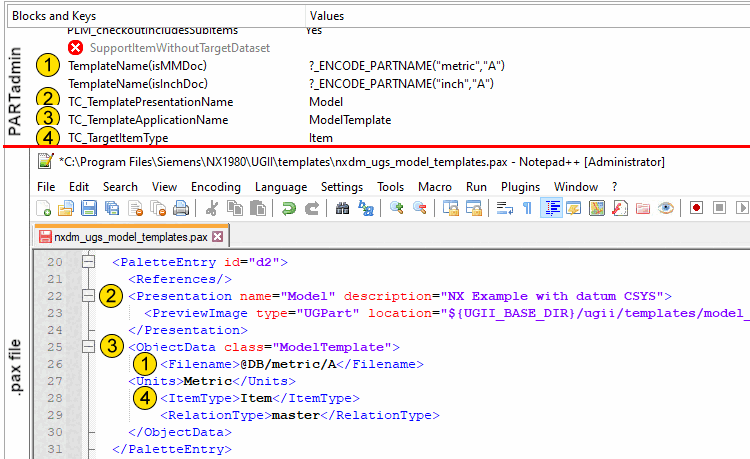

    The following table shows the schema:

      PARTadmin -> ifnxteamcenter.cfg -> Block PLM -> Key Value nxdm_ugs_model_templates.pax -> TAG (Attribute)
    TemplateName(isMMDoc)

    ?_ENCODE_PARTNAME("metric","A")

    		<Filename>
    TC_TemplatePresentationNameModel (in this example, the name of a simple template)<Presentation name=...>
    TC_TemplateApplicationNameModelTemplate<ObjectData class=...>
    TC_TargetItemTypeItem<ItemType>
    TC_allowItemAltRepFalse (default)<ShowAltRep>
