The central element is the assignment of roles to role records. The assigned roles are displayed in PARTdataManager /3Dfindit when calling authenticate/change user [Authenticate/switch users] or Select group are offered for selection.

At least one role is assigned to each role set [Role set] in PARTadmin in the dialog area Available roles and their display sequence [Available roles and their display order].

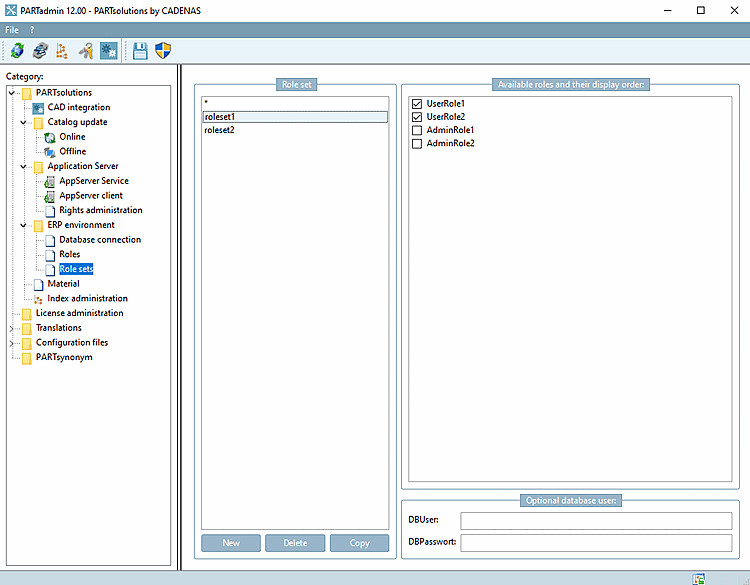

Category "Roll sets [Role sets] "

	Note
	Multiple selection is possible.

If several roles have been assigned to a role set, the following opens in PARTdataManager authenticate/change user [Authenticate/switch users] or Select group the Select role dialog box opens.^[70]

Order of the roles

The order of the roles in the Select role dialog box corresponds to the order in the dialog under Available roles and their display order.

You can change the order of the displayed roles, if needed.

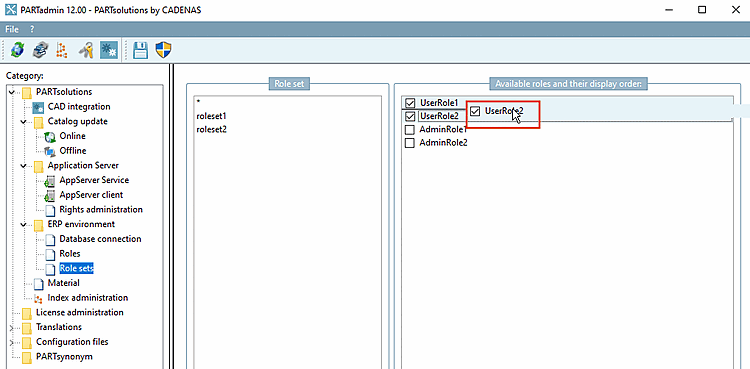

Select the roll and move it to the desired position by holding down the mouse button.

Control role selection via system variable

The role selection can also be controlled via a system variable. The desired role is then automatically selected during the login process, regardless of whether the user is configured as valid for this role or has several roles to choose from.

Setting via user interface: PARTadmin -> ERP environment -> User role assignment [User-Role assignment]

In order to assign roles to a user select the desired user and activate the respective checkboxes.

The selection is saved under $CADENAS_SETUP/plinkusers.cfg in the GROUPS key.

[ecat]
GROUPS="ECATALL","ECAT1","ECAT2","ECAT3","ECAT4","ECAT5","ECAT6"
GROUPORDER="DUMMY","ECATALL","ECAT1","ECAT2","ECAT3","ECAT4","ECAT5","ECAT6","LOC1",...
