7.9.3.3.1. Delete from history and sketch

Delete selected step

Removes any step from the sketch and the history.

[Note]Note

If the button is grayed out, this is a step with dependent elements. These can only be deleted together. See Delete selected step with dependent elements.

  1. In the Sketcher, click on the element you want to remove.

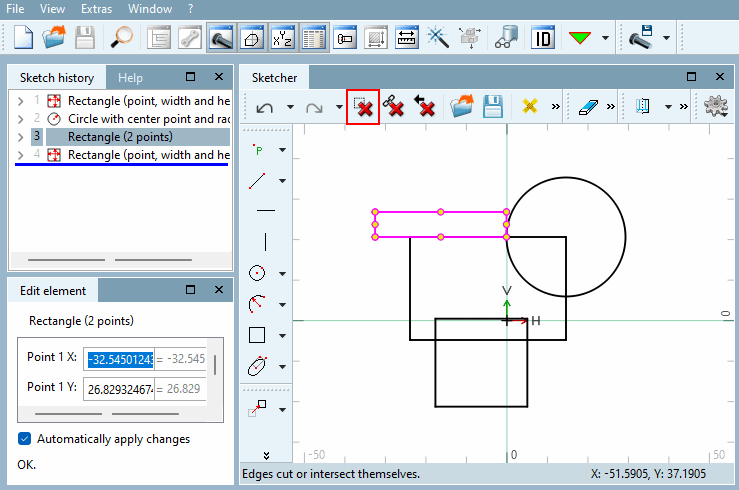

    Selection before deletion

    Selection before deletion

  2. Click on Delete selected step.

    Alternatively, you can right-click on the selected step in the sketch history [Sketch history] to open the context menu and click on Delete step.

    → The selected element is deleted from the history and the sketch.

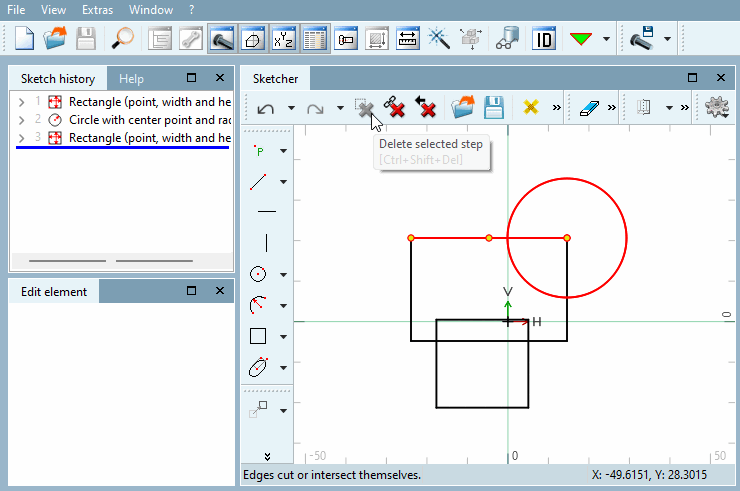

    Result after deletion

    Result after deletion

Delete selected step with dependent elements

Removes any step and all dependent steps from the sketch and the history.

  1. In the Sketcher, click on the element you want to remove.

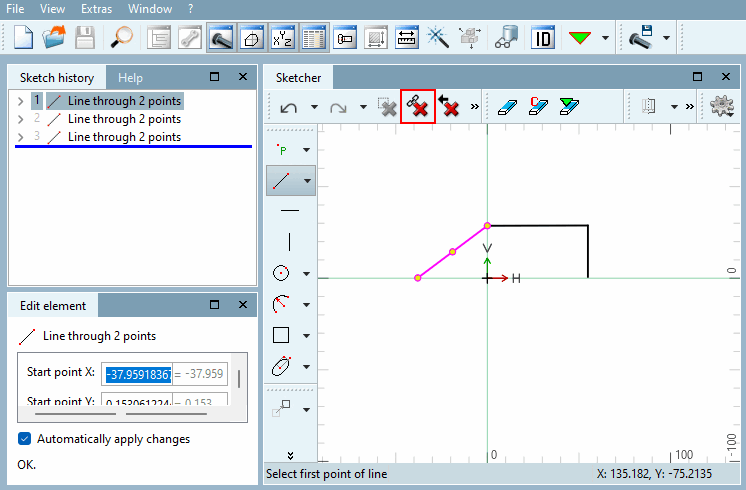

    Selection before deletion

    Selection before deletion

  2. Click on Delete selected step with dependent elements.

    → The selected step is deleted from the history and the sketch along with all dependent elements.

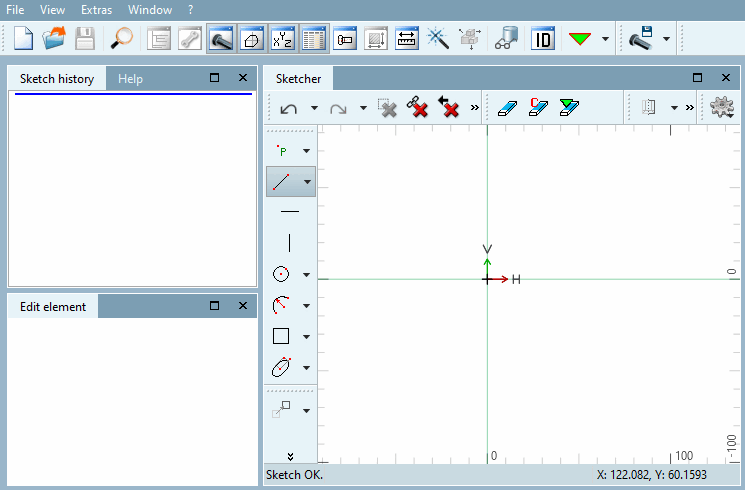

    Result after deletion

    Result after deletion

Delete last step

Removes the last step from the sketch and the history.

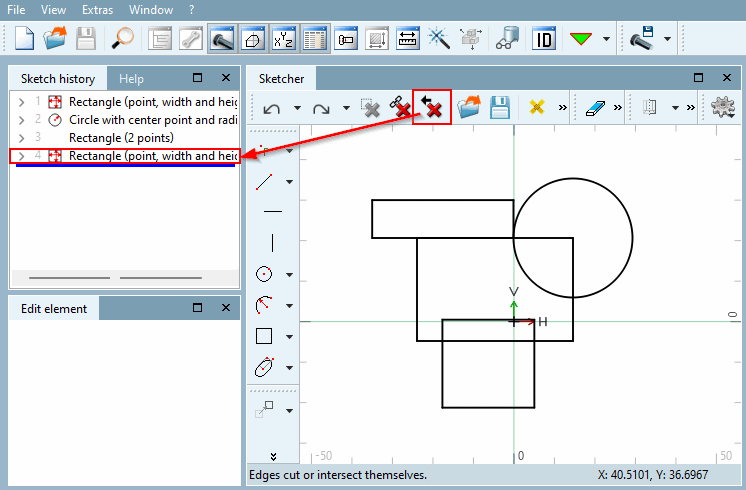

Event display Delete last step

Event display Delete last step
