7.9.3.3. Delete

7.9.3.3.1. Delete from history and sketch
7.9.3.3.2. Historical deletion

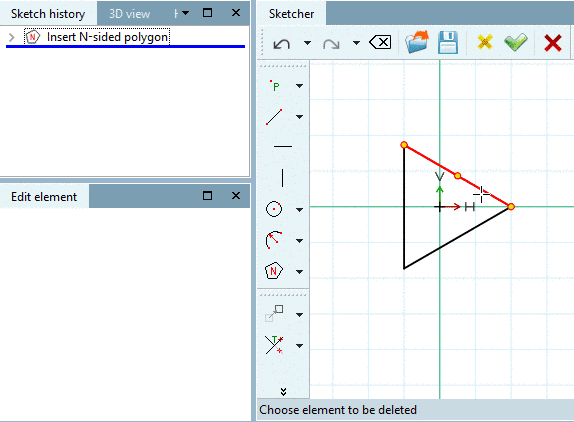

Elements can be removed from a sketch. The following options are available:

  1. Delete from history and sketch

    Removes the element from the history and the sketch.

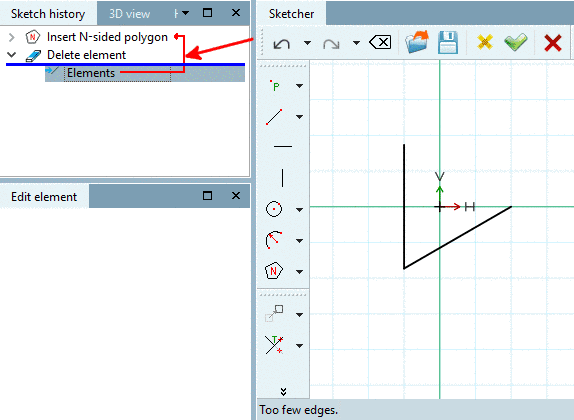

  2. Historical deletion

    Adds a delete element [Delete element] to the history. When calculating the history, the affected elements are only removed at this point. This has the advantage that dependent elements can be created up to that point.

[Note]Note

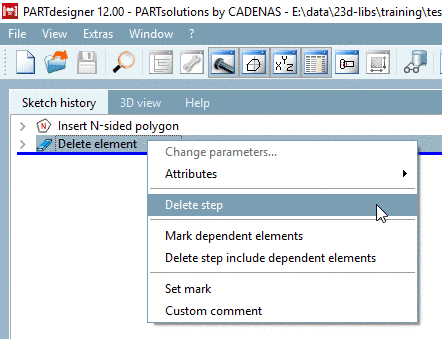

You can undo the deletion process by undoing the last step.

To do so, click on the ribbon, click the Undo button.
