13.3.1.1.  General " tab page

On the General tab page you will find general license information such as

  • Connection to local license demon: OK / No connection

  • Local communication port

  • License type

  • Hostid: All valid hostid are displayed

  • Active modules

In the Configured license server dialog area, you will find further information on the currently connected license server such as name [Name], type/role [Role] (master/backend) and version [Version] (8.1 or 9.0x).

Check connection [Check connection...]...: The display under Configured license servers [Configured license server] is updated.

Start license management PARTadmin [Start PARTadmin license administration...]...: The PARTadmin module is opened with the License [License administration] management category.[126]

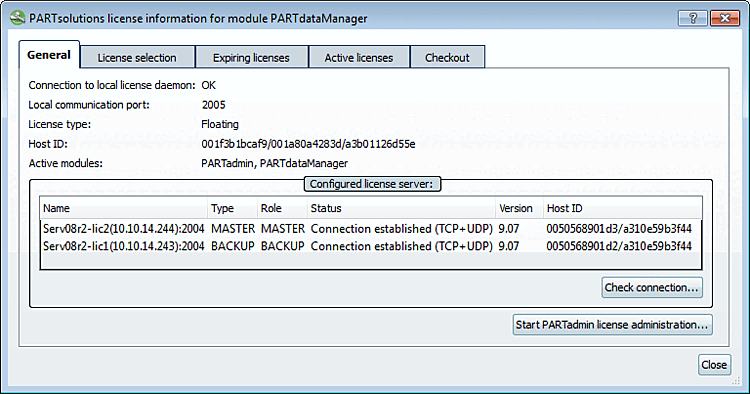

General " tab page

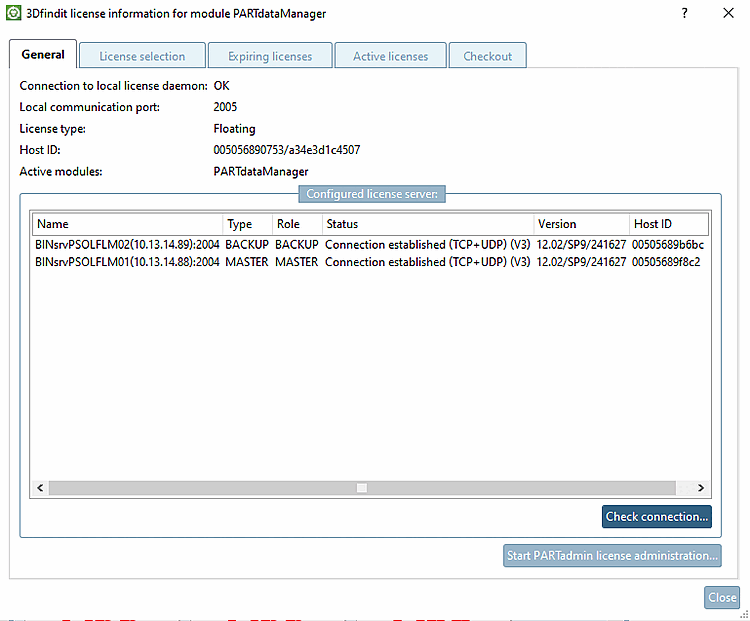

General " tab page



[126] You can find detailed information on this under License Section 1.4, “ License administration ” in PARTsolutions Administration - Manual .
