With V12.6, the minimum and maximum values for translation and rotation set in PARTdesigner -> Configurator -> Rule properties are visualized in the 3D view.

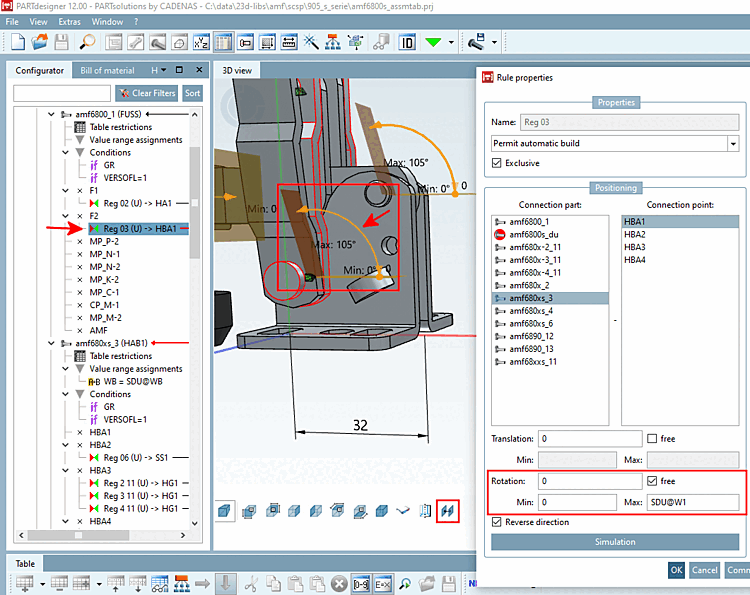

Example with "Rotation [Rotation] "

The feature can be activated or deactivated in the 3D toolbar via the Show control limits [Show rule limits] button to activate or deactivate it. If it is activated, all control limits for an assembly are shown.

Min values are represented by yellowish planes, max values by reddish ones. The respective value is displayed in it or besides.

The current value is represented by an orange dot which is located on an orange line (translation) or arc (rotation).

If there's a formula for one of the variables, the formula's value gets resolved.

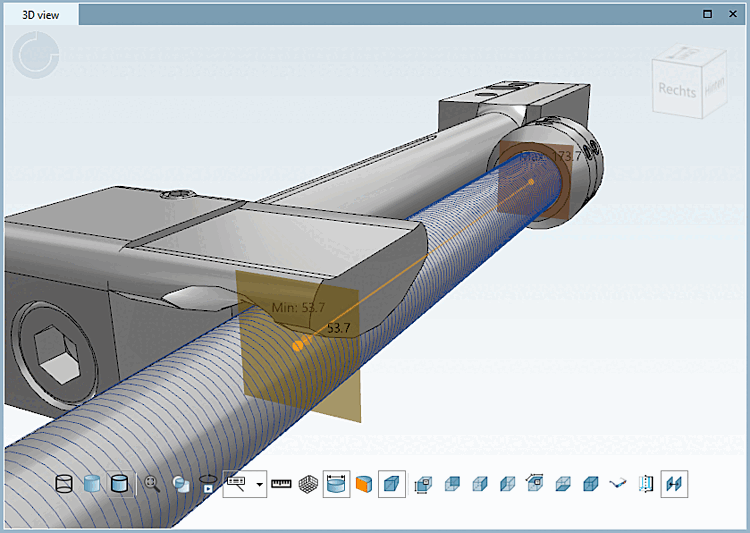

Example "Translation [Translation] "
