1.8.1.2.6. Rotation of plane on freely specified axis

As of V12 SP4 a plane can not only rotated on a main axis (X/Y/Z), but on any freely specified axis.

[Note]Note

This feature is officially available only for future versions and is only an internal test version as of V12 SP4.

  1. Select one of the base planes (XY/ZX/YZ) and click on the context menu command Insert new plan.... [Insert new plane...]

  2. Under Type, select Layer with rotation [Plane with rotation] in the list box.

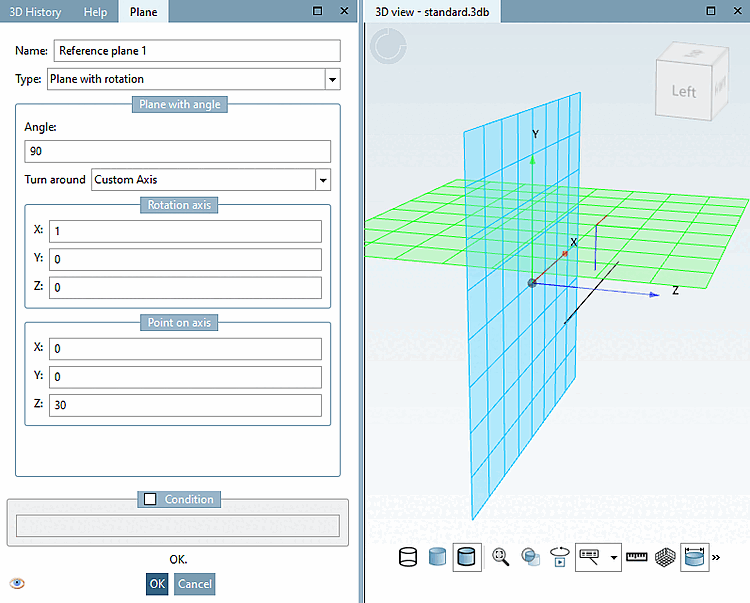

    Example: Base plane XY rotated on X axis and shifted in direction of Z axis

    Example: Base plane XY rotated on X axis and shifted in direction of Z axis

  3. Enter a number of degrees under Angle.

  4. Select the Custom axis [Custom Axis] option in the list box under Rotate around [Turn around].

    The rotation axis is defined via a direction vector, which you specify in the Rotation axis dialog area AND an axis point, which you specify under Point on axis.
