2.5.5. NX - SAP ECTR - rfc-tunnel-whitelist.txt

RFC Tunnel Whitelist

Under C:\Program Files\PARTsolutions\iface\plm\ifsapectr\cde\customize\config find the file rfc-tunnel-whitelist.txt. The file allows you to execute certain calls that are otherwise not allowed. The customer must be informed of this. [16]

Contents:

/DSCSAG/FOL_OPENDETAILS41
/DSCSAG/DOC_VERSION_GET_ALL3
/DSCSAG/OBJ_GET_MULTIDETAIL2
/DSCSAG/DOC_CHECKOUT_URL2
/DSCSAG/MAT_GETLINKEDDOCUMENT3
/DSCSAG/DOC_CHANGE_MULTI3
/DSCSAG/MAT_CHANGE_MULTI
/DSCSAG/ADV_MAT_SETALL
/DSCSAG/DOC_LONGTEXT_SAVE
/DSCSAG/MAT_CREATE_RFC
CDESK_SRV_CREATE_VARIANT
CDESK_SRV_CREATE_VAR_MAT_LINK
RFC_CALL_TRANSACTION_USING

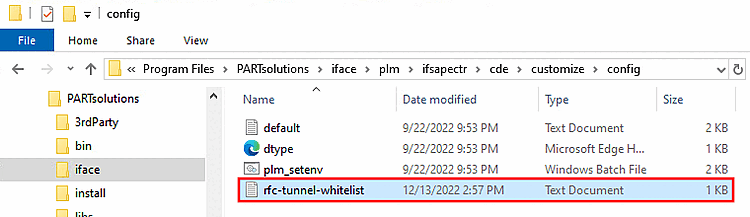

Storage location on PARTsolutions pages

Storage location on PARTsolutions pages

Copy this file to

  • \ECTR5.2\applications\cde\customize\config

    or

  • \ECTR5.2\customize\config

    or

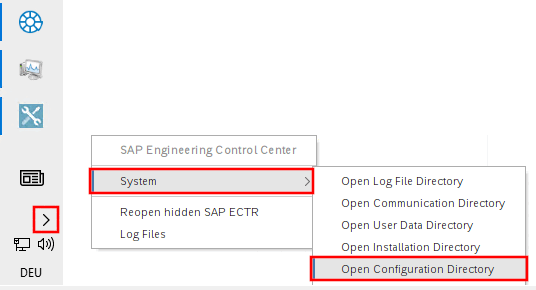

  • the active configuration directory.

    [Note]Note

    As this setting is saved locally, it must be repeated for each Windows user and for new installations.

    If your own whitelist already exists in the ECTR folder, it must be supplemented with the calls from the PARTsolutions installation via copy & paste.

    Beispiel:

    C:\Users\name\AppData\Local\SAP\ECTR\conf\ectr52\Q20_208_ZZ15\customize\config

See also Section 3.3.3.2, “Installation (Basis and Addons) ” in ENTERPRISE 3Dfindit (Professional) - Administration.



[16] #168733
