Compare components [Oppose components]

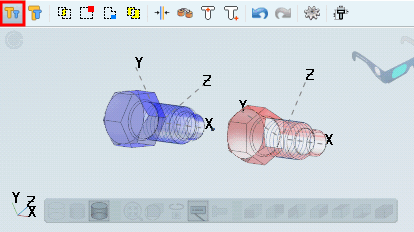

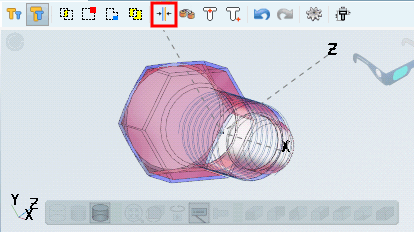

Overlay components: This is the standard function. If the overlay is not yet satisfactory, try one of the other functions.

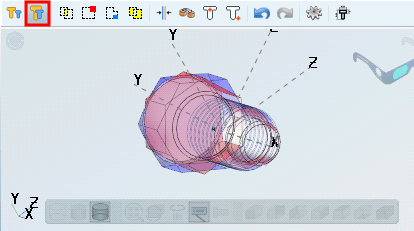

Here overlaying along the main axis is not sufficient. Compare next figure.

Automatically align rotation and position [Automatically calculate aligned rotation and position]

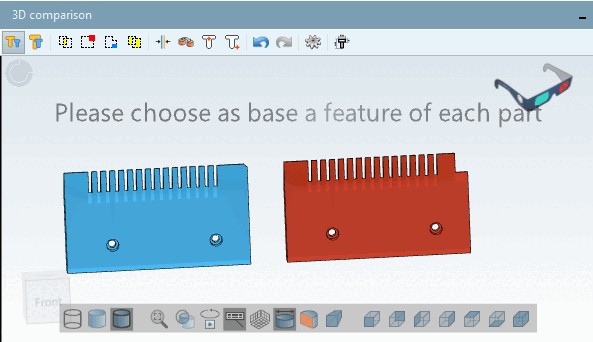

Align rotation and position manually [Align parts position and rotation manually]: As soon as you have clicked on the button, the corresponding information text appears: Please select a feature as the basis. [Please choose as base a feature of each part]

Once the second feature is clicked, positioning is automatically performed.

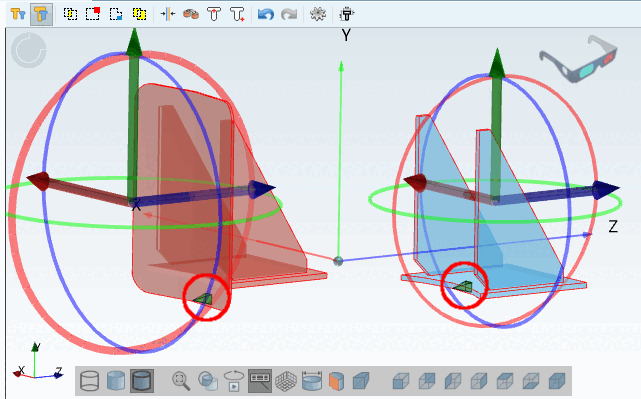

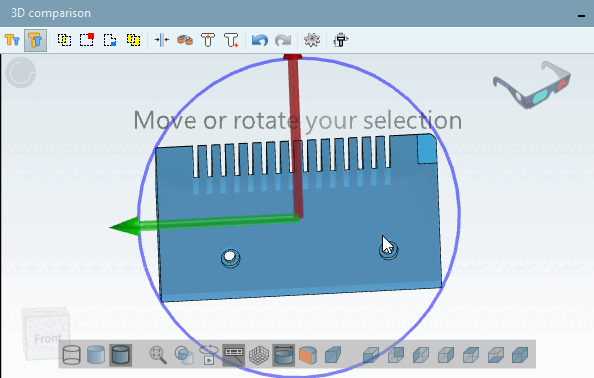

Remaining degrees of freedom for rotation and movement are signalized by respective axes and circles.

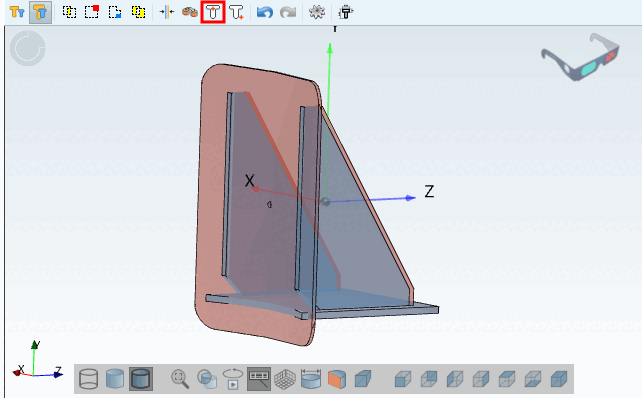

Original rotation and component-centered position [Original rotation and centered position] (best fit)

In this example the parts are optimally aligned.

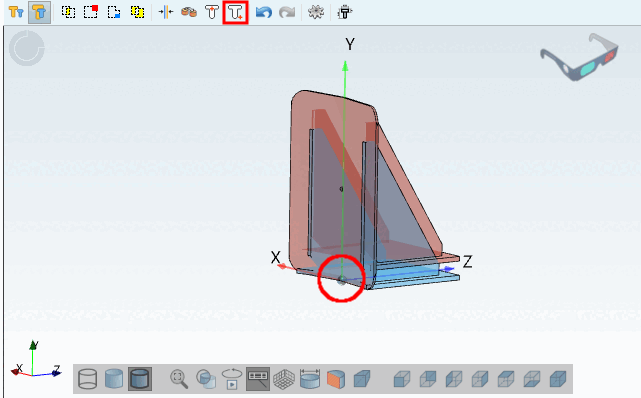

Original rotation and position (zero points superimposed)
