6.10.2. Check ERP mapping (Add ERP mapping... and Edit ERP mapping...)

6.10.2.2. User interface and simple use case

This section explains the user interface at a glance and will show a simple use case, so that you can familiarize yourself with the functioning in principle.

User interface

The user interface is divided into the following areas:

Directory structure left
- Projects without icon do not need to be verified normally (nevertheless check value ranges carefully).
- For projects with icon an automatic mapping could be performed, however, finally the assignments (or missing assignments) have to be confirmed ( or ).
The right-hand side of the Edit ERP mapping dialog box is divided into an upper and a lower half.
- Upper half:
  Display of target projects (new version) with the option of adding conditions [Conditions] and/or variable mapping [Variable mapping]
- Lower half:
  Display of tables of old and new version

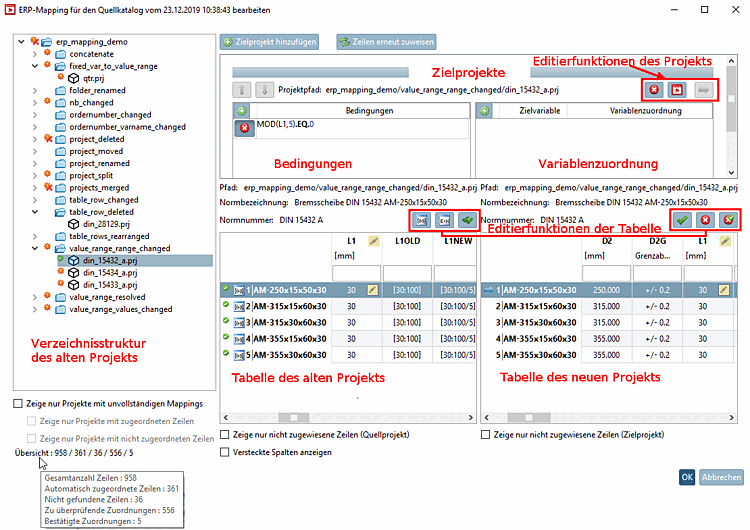

User interface at a glance

Example halter use case

Initial situation: A project has be automatically assigned. As it contains relevant changes, in the ERP mapping dialog, it has been marked with the icon signalizing changes .

Check whether the table contains changes. In this example, the NB change is the only change. Only "hexagon nut " has been removed from the SR. This means that all assignments can be confirmed.

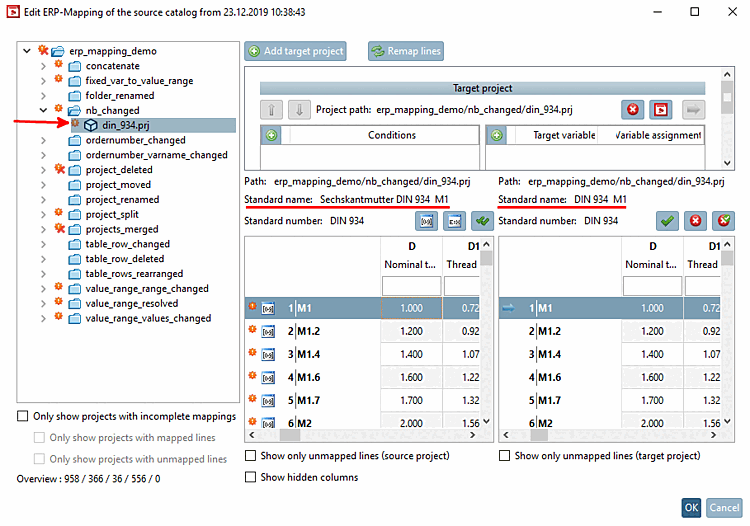

Change of NB

Click on Confirm all assignments [Verify all mappings] .

-> In the tree the project is marked with a green checkmark. Furthermore all table rows get a green checkmark, too.

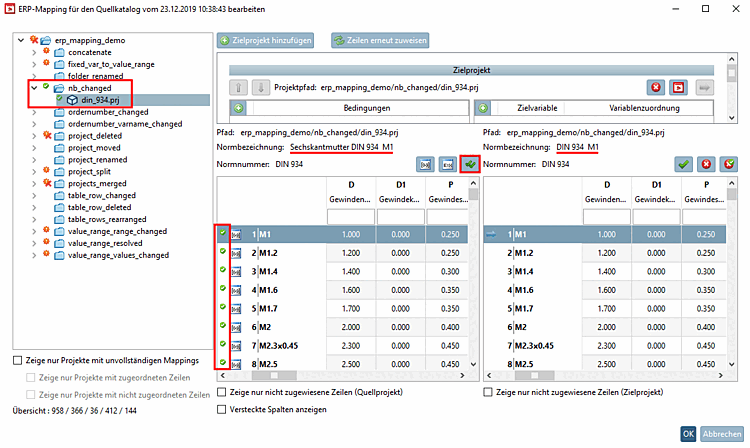

All assignments confirmed

Details on the user interface can be found under Section 6.10.2.3, “User interface: Reference of icons and functions in detail”.

Detailed explanations of use cases can be found at Section 6.10.2.4, “The most important use cases ”.
