10.2. After installation

Calling up the online help

Call up the online help in ENTERPRISE 3Dfindit or eCATALOG 3Dfindit applications (PARTadmin, PARTproject, PARTdataManager, etc.) via the Help menu or via F1.

3Dfindit application -> Help menu

3Dfindit application -> Help menu

Call in the CAD system, in the ENTERPRISE 3Dfindit menu or in the toolbar to open the Online help by clicking on up.

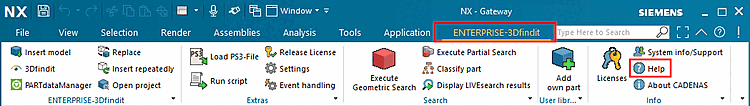

CAD system -> Help button

CAD system -> Help button

Searching the online help using a search term

  1. Enter in the input field Search... Search term.

  2. Optionally, expand the list field on the right to specify the manuals to be searched. This helps to avoid unwanted hits.

  3. Start the search by clicking on the Return key.

    -> By default, the Contents [Content] Tabbed page is activated on the left. The search results are displayed on the right.

    In this example, the search was only carried out in the ENTERPRISE 3Dfindit manual.

    In this example, the search was only carried out in the ENTERPRISE 3Dfindit manual.

    -> When you click on a result, the corresponding content is displayed on the right and the corresponding chapter is highlighted on the left in the table of contents.

Searching the online help using the table of contents

When you open the help, the Contents [Content] Tabbed page is displayed on the left by default.

Click on the desired chapter in the table of contents on the left to load the corresponding page on the right.

In the table of contents, truncated headings (recognizable by ...) are displayed in full length in the tooltip.

Searching the online help using the index

Select the Index Tabbed page on the left.

Enter a term. You will only receive results if the entered term appears exactly as it does in the index.

[Note]Note

The search distinguishes between upper and lower case.

-> You will now see the corresponding index terms.

Example: Indexes filtered with the term "Partial search"

Example: Indexes filtered with the term "Partial search"

Click on the desired hit.

-> The search result is now displayed on the right.

[Tip]Tip

  • Basic difference between full text search (Tabbed page Contents [Content] ) and index search (Tabbed page Index ):

    The full text search is a "fuzzy" search (similarity search). You will also receive hits if the search term was not exact. This may be desirable, but it can also be annoying.

    If you want to carry out an exact search, put the search term in quotation marks.

    Sometimes it is better to limit the search term to avoid unintentionally excluding results (or obtaining unwanted results).

    For example, leave out unimportant filler words or use only the core term:

    Leave out "part" in the example.

    Leave out "part" in the example.

  • For example, search with terms as they are displayed in the tooltip.

  • The index search always searches for the exact term entered. Start the search with the return key after entering just a few letters. You will receive hits if the entered term appears anywhere in the indexed term.

Navigation

  • Before and Return according to the sequence of the pages already accessed Use the blue arrow keys to and .

  • You can go back and forward in terms of the structure of the table of contents using the Prev and Next buttons.

  • Pressing Up takes you to the next higher chapter in the hierarchy (the button can be found at the bottom of the page).

    Home takes you to the first page of the relevant manual (the button can be found at the bottom of the page).

Search path (breadcrumbs)

The search path shows where you are currently located. This is particularly helpful if you have followed cross-book links.

The path components are links so that you can easily jump to the relevant chapters.

With Click on an arrow in the search path, the chapter.
