1.3.10.3.  3D comparison

1.3.10.3.1. Align parts - Functions
1.3.10.3.2. Comparison operations
1.3.10.3.3. Other functions
1.3.10.3.4. Settings
1.3.10.3.5. Orientation cube
1.3.10.3.6. Context menu "3D comparison "

In order to align parts manually, do the following:

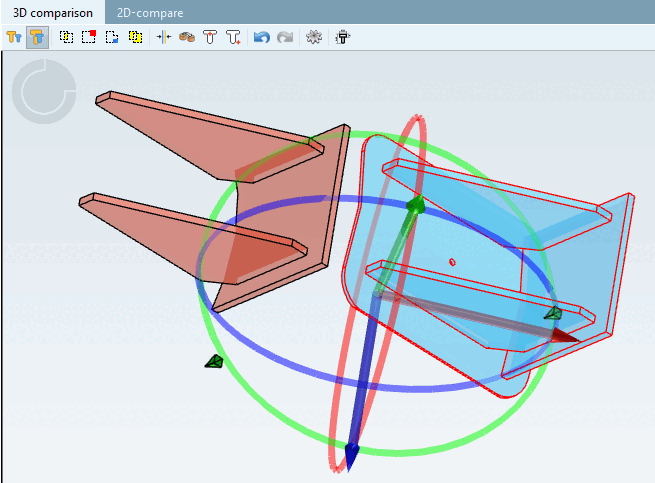

  1. Click on one of the two parts so that rotational circles and axes are displayed.

  2. Select a rotational circle or axis and move the part with hold down left mouse key.

The functions of the toolbar at the bottom of the 3D comparison are identical to those under Part view -> 3D view. See Section 1.4.6, “Docking window "3D view" ”.

In the following you can find a description of the individual functions of the above toolbar.
