7.13. Docking window "Configurator " / "Assembly " 7.13.5. Docking window "Configurator " - Specify configuration
|  |
| Prev | Next |
- 7.13.5.1. Context menu of the assembly
- 7.13.5.2. " context menu - Insert part..
- 7.13.5.3. Context menu single parts
- 7.13.5.4. Context menu "Table restrictions "
- 7.13.5.5. " Value range assignments" context menu
- 7.13.5.6. Context menu " Conditions "
- 7.13.5.7. Context menu of connection points

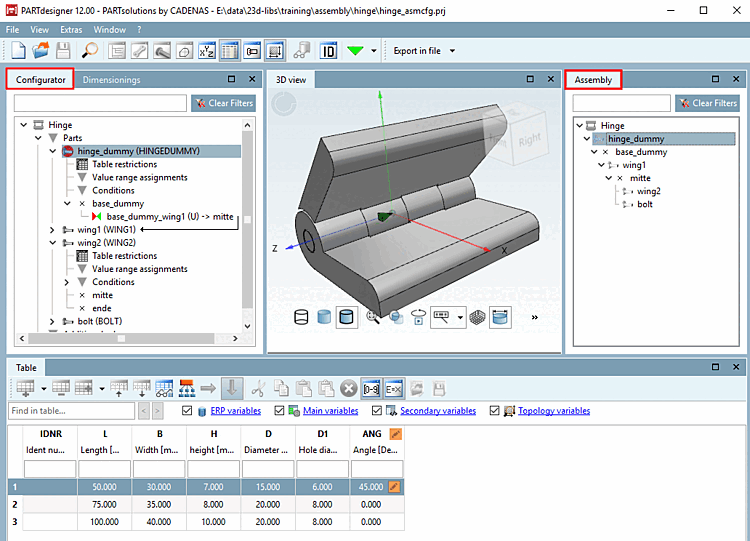

The set of rules that generates an assembly from individual parts is created in the docking window configurator [Configurator]. Context menus are used to define rules [Rules] for each connection point and conditions [Conditions] for each component.
The docking window Structure [Assembly] shows how the individual components are connected to each other and is used to select parts.
The docking window configurator [Configurator] and structure [Assembly] with their specific context menus are described below.
