The CADENAS -system-internal classification CNS also contains classes that are required in the BIM area.
The
CNSSPECPROPARCclass provides features for long and short text, among other things. The specific content is created in the form of media variables during catalog modeling. The exact name of the media variables depends on the manufacturer.The export formats GAEB or ÖNORM, for example, then again use those variables' content. So the content can be shown in any tender software.
Information on this can be found under Section 5.12.12.5, “Classify tender texts: General approach”.

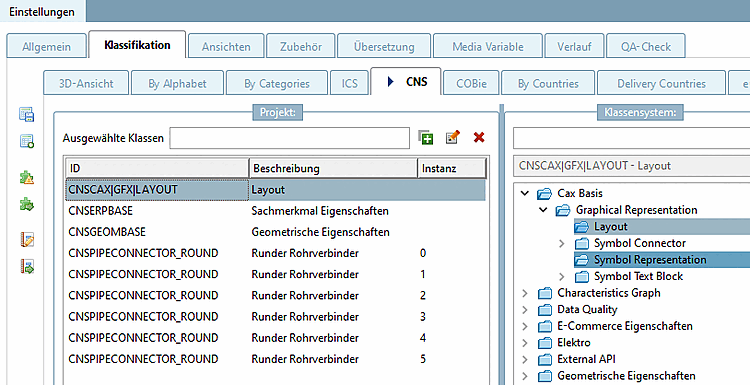

For referencing symbols, the CNS classification provides the classes CNSCAX|GFX|1 (symbol connection) and CNSCAX|GFX|SYMREP (symbol representation) in particular, as well as the class CNSCAX|GFX|LAYOUT. Explanations on the distinction between the two data models can be found at Section 5.12.12.2, “Classify symbols (DXF/DWG) as "Additional export formats " (manual)”.
An example for the manual connection of symbols can be found under Section 5.12.12.2, “Classify symbols (DXF/DWG) as "Additional export formats " (manual)”.
An example for the automated connection of symbols can be found under Section 5.12.12.3, “Classify symbols (DXF/DWG) as "Additional export formats " (automated) ”.
