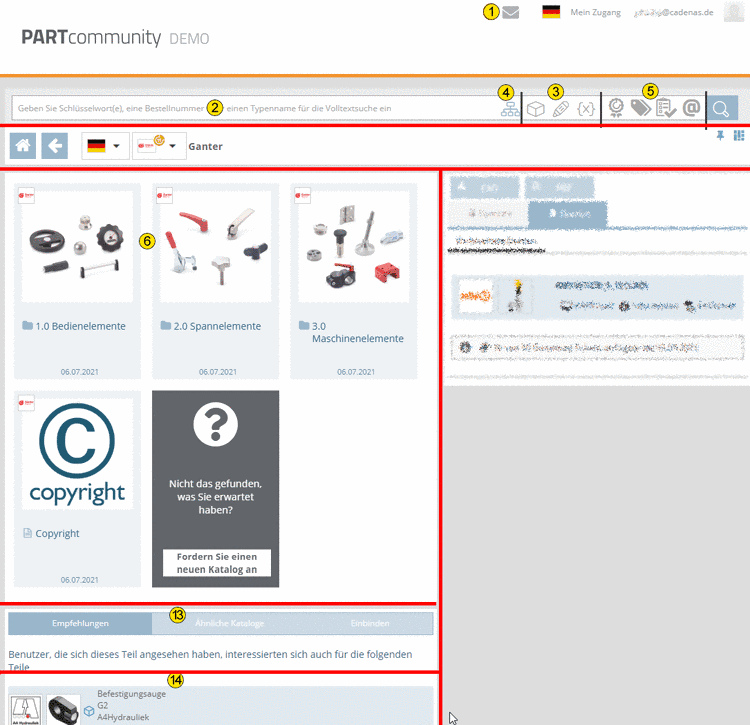

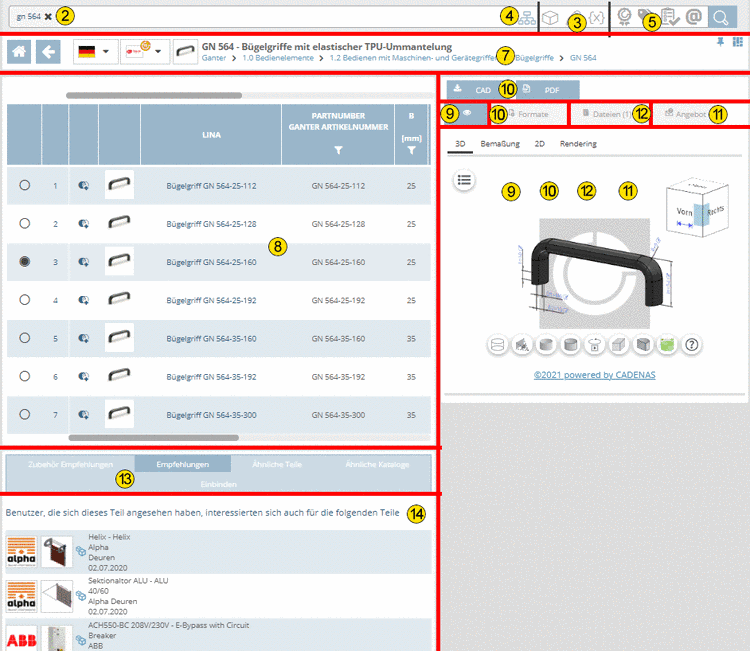

Zoom all

The display is adjusted in the center of the window.

Magnifying glass

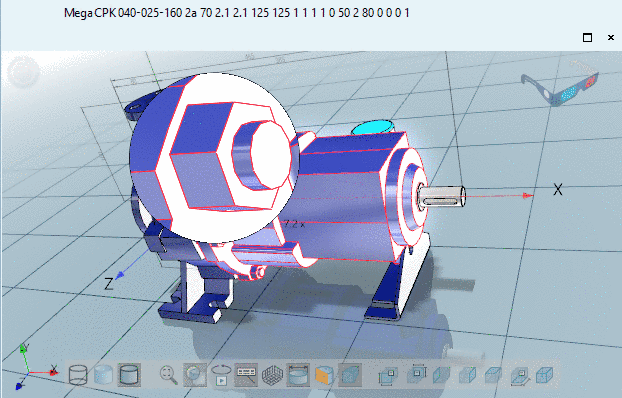

The magnifying glass enables viewing parts in detail.

Magnifying glass on

	Note
	The rules for the mouse function in the 3D window apply to the magnifying glass function as well. For example when holding down the left and right mouse buttons you can move the magnifying glass over the part. The mouse wheel zooms inside the magnifying glass.

Animation

The animation (rotate part) can be turned on/off.

	Note
	By clicking anywhere outside of the toolbar, the animation is also turned off.

Show texts and classes

With the command Show texts and classes you can show/hide them in the 3D view.

On how to create texts and classes you can find detailed information under Section 5.12.9, “Create Published elements (classify connection points) ”.

Measure

See Section 7.7.3.1, “ Messen von 3D-Teilen ”.

Show measuring grid

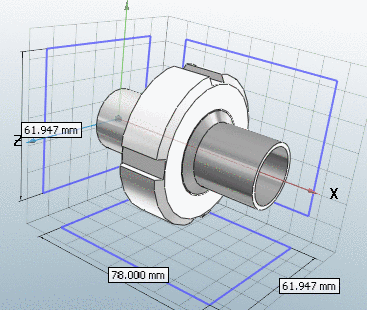

When activating the menu item Measuring grid in the context menu of the 3D window, the maximum dimensions are displayed.

Show Dimensionings

See Section 3.1.7.6.5, “ Show Dimensionings ” in PARTsolutions - User manual.

Define section cut...

See Section 3.1.7.6.7, “ Define section cut... ” in PARTsolutions - User manual.

Perspective projection, Front view (Z), Rear view (-Z), Left view (-X), Right view (X), Top view (Y), Bottom view (-Y), Isometric view

If dimensionings have been provided by the catalog supplier and Show Dimensionings is activated an icon with dimension line is displayed. On this see Section 3.1.7.6.5, “ Show Dimensionings ” in PARTsolutions - User manual.

Red/cyan

Display of the part in plastic 3D preview. The three dimensional effect only takes place when using red/cyan glasses!

To increase the effect of the plastic effect, the selected part is displayed flushed. The background is automatically darkened. The option red/cyan effect can be used independent of the display mode (Lines, Hidden lines, Shaded, etc.).
