As of V12 tools are displayed in groups by default.
Clicking with the secondary mouse key at any place in a toolbar will open a menu to turn on and off the toolbars:
The following illustration shows the toolbar names and also the group names as they are used when the Group tools setting option is deactivated.

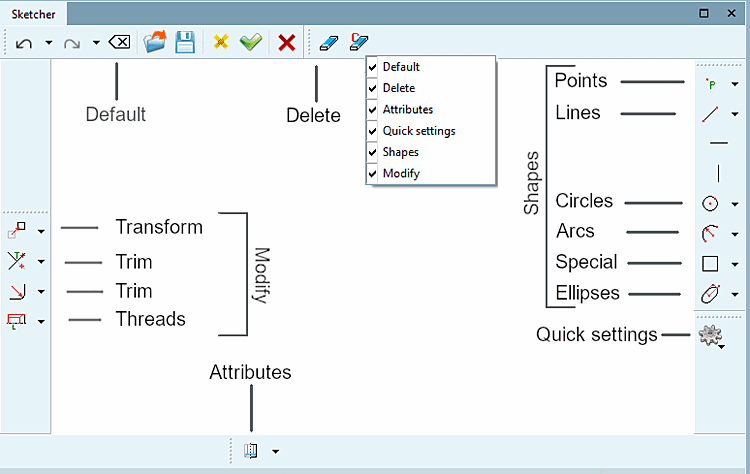

![Display of functions with setting option "Group tools [Group tools] " activated](https://webapi.partcommunity.com/service/help/latest/pages/en/partwarehouse/doc/resources/img/img_d2cce063bf6b4b608202f3d65ade38eb.png)
The Group tools function is switched on by default. You can find the option to switch it on and off in the PARTdesigner under Tools [Extras] menu -> Settings [Preferences...]... -> Sketcher (hist.) [Sketcher (feat.)].
The following figure shows the toolbars with names without grouping:
![Display of functions with setting option "Group tools [Group tools] " deactivated](https://webapi.partcommunity.com/service/help/latest/pages/en/partwarehouse/doc/resources/img/img_6464c6b1b3494dceab10b9ea3761290c.png)
