The selection and settings within the 2D view dialog window form the basis for displaying the object in your CAD system.

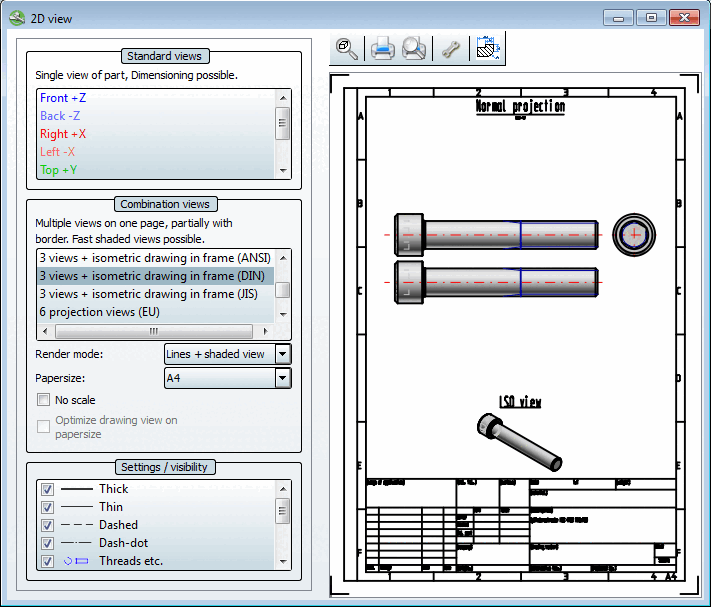

2D view dialog box

As soon as you click on a view, the 2D derivation of the part is created.

	Note
	The shaded display [Shaded view] option is an exception to the combination views [Combination views]. Here, the 2D derivation is only created if it is transferred to the CAD system. See Section 1.6.1.2, “ Combination views ”.

When all settings have been made, click Transfer to CAD.

The settings area of the dialog page is subdivided as follows:

The individual areas are explained in the following sections.
