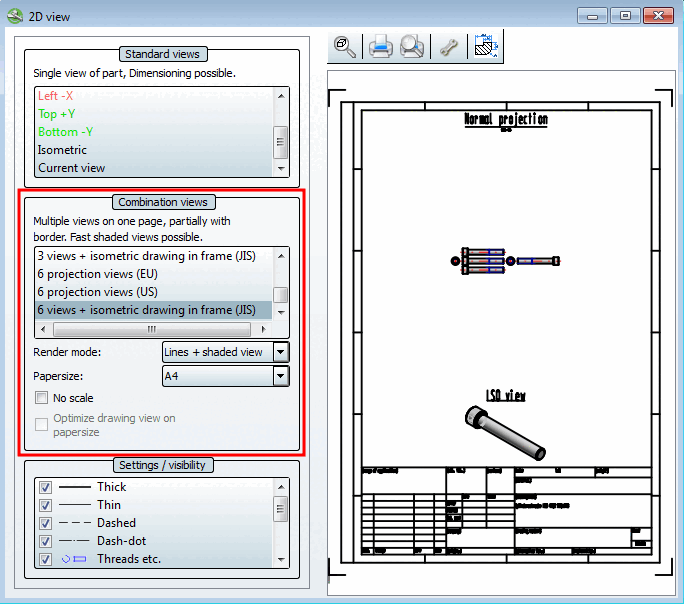

With frame:[a] |
|
|
| |
[a] The views with frames can be modified. It is also possible to create completely new views. See Section 7.11, “Docking window "2D derivation " - Create your own combination views (*.dw) ”. | |
Render mode: See Section 12.2.2.2.1, “ Render mode ”.
Paper format [Paper size]: See Section 12.2.2.2.2, “ Scaling and Paper formats ”.
No scale: See Section 12.2.2.2.2, “ Scaling and Paper formats ”.
Optimize drawing view on sheet [Optimize drawing view on paper size]: This option is only active if an additional abbreviated view has been created for the component. See Section 12.2.2.4, “ Optimize alternative 2D size / drawing view on sheet ”.
