1.3.11.5. Buttons

  • With click on this button the settings section is displayed or hidden. See Section 1.3.11.6, “Settings ”.

  • Save as image...

    The graph is saved as picture in the PNG format.

  • Save graph... [Save Graph...] / Load graph [Load Graph...]..

    With these commands you can save a graph and later based on it perform searches anew.

    Or you can make it available for others. But please regard that the same environment (catalogs) is available again.

  • Print...

  • Reset

    Reset deletes all nodes except the root node.

  • Undo

    ... sets one step back chronologically

  • Next

  • Layout

    Using the layout [Layout], you can choose between tree [Tree], cloud [Cloud] and spiral display [Spiral]. Regardless of the layout type and the current magnification (middle mouse button), the part information is displayed in large when you move the mouse over a part.

    • Spiral

      The spiral [Spiral] layout type is set as the default value, but only becomes visible when the number of search results [Number of search results] is approx. 16 or more.

      The further out a result part is displayed the less is the accordance with the search part.

      Layout type "Spiral [Spiral] "

      Layout type "Spiral [Spiral] "

    • Cloud

      With the Cloud layout type, the display of child nodes is limited to 70, the display of individual nodes to a total of 200-300. (You can limit the nodes displayed per search run. See below)

    • Tree

      There is no restriction on the number of nodes for the tree [Tree] layout type.

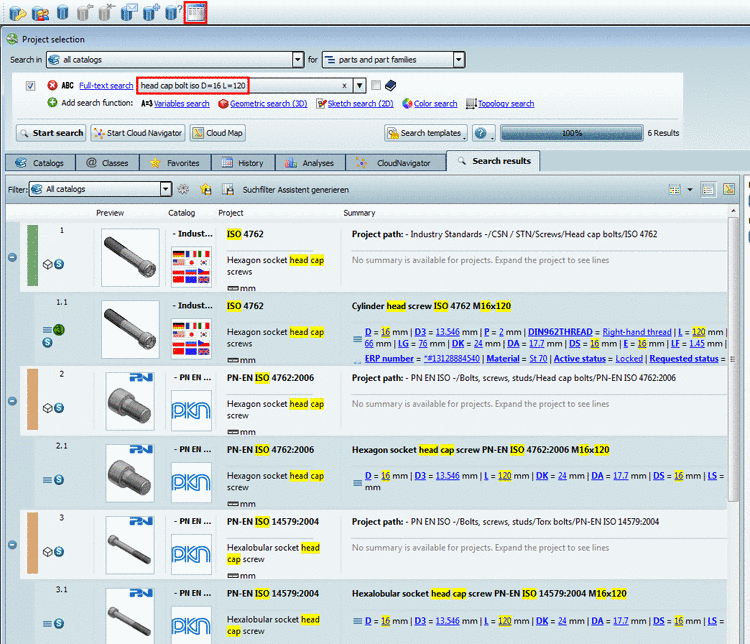

      Tree model [Tree] with enlarged parts information

      Tree model [Tree] with enlarged parts information
