Before projects are published, a QA check is performed in many ways.

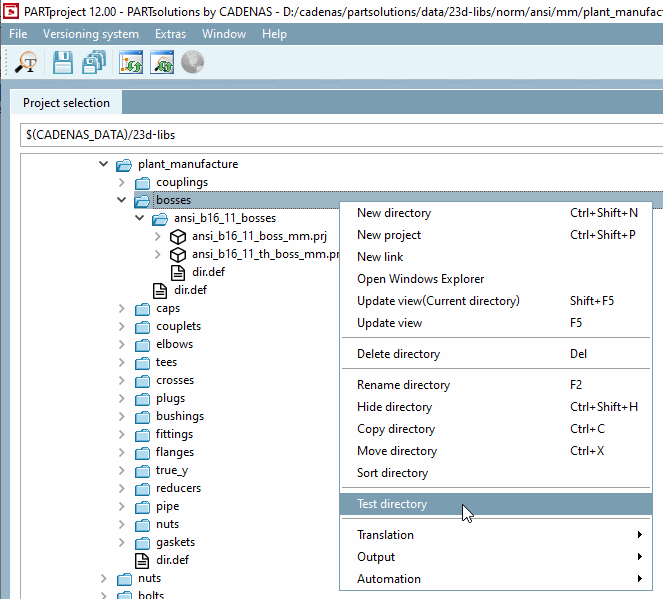

The call is made in PARTproject under Project selection, in the context menu of projects ( Test project ) or directories (Test directory [Test directory] ).

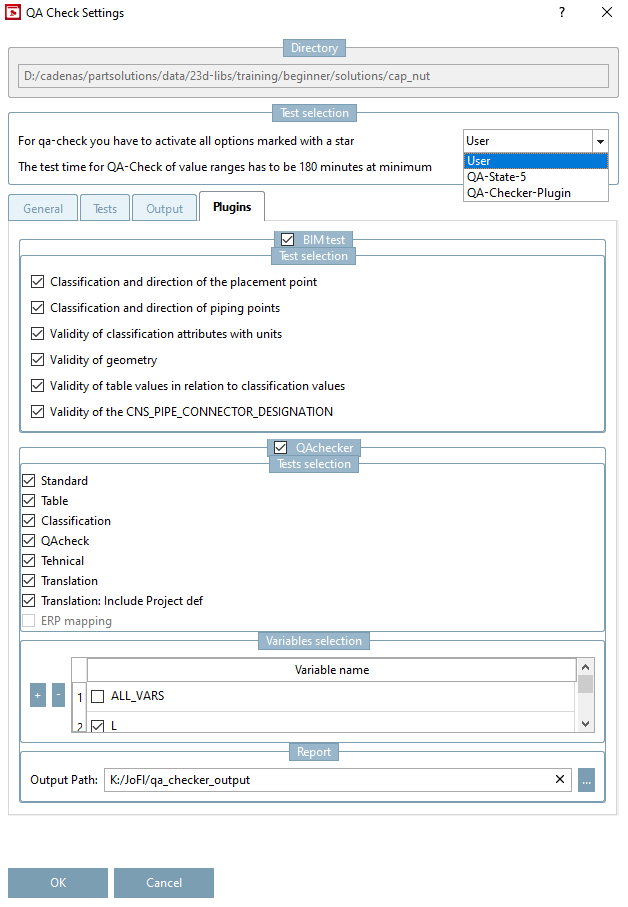

-> The QA Check Settings dialog box opens with the General, Tests, Output and Plugins tab pages.
With V12 SP2, the BIMtest and QAchecker plugins have been added (or integrated).

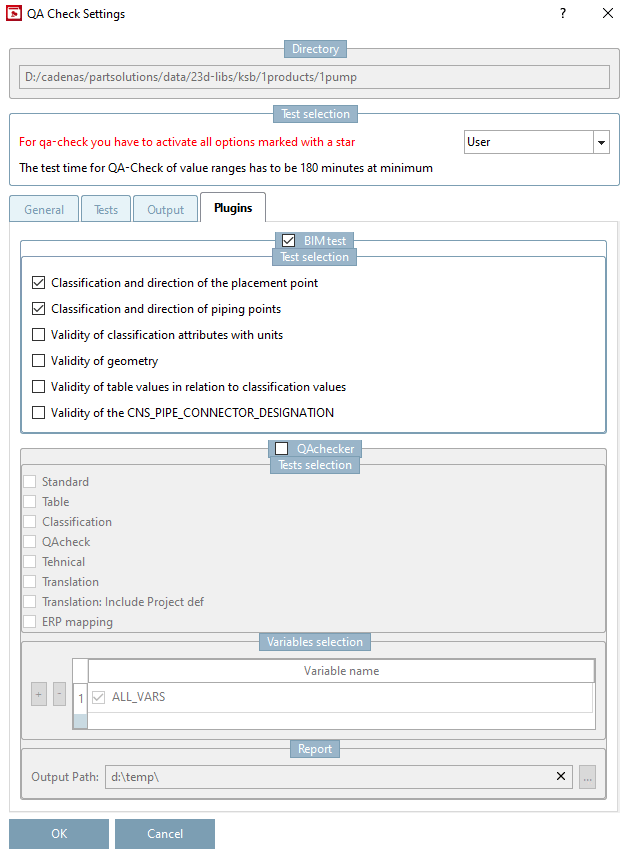

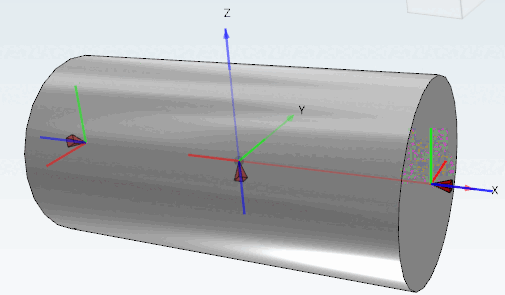

Various requirements for the BIM area can be tested using the new BIMtest plugin.
Activate the dialog area and then the desired options.

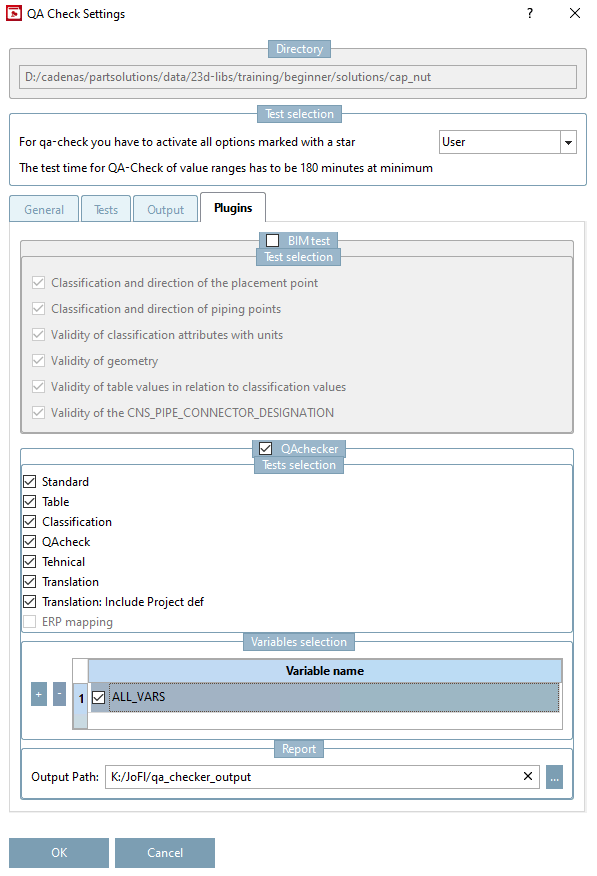

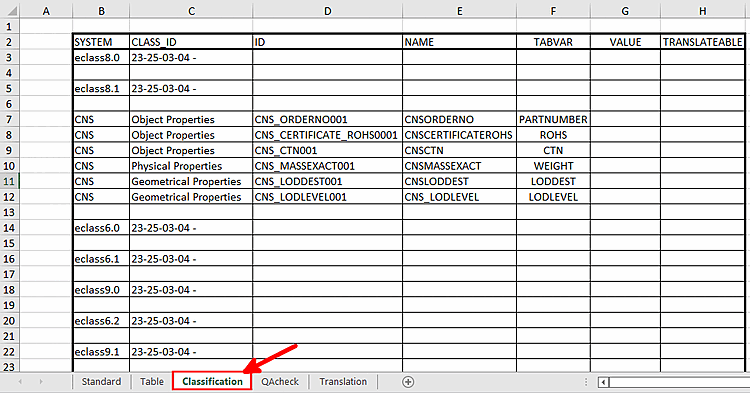

The QAchecker can be used to selectively check certain aspects such as table, classification and translation.
Activate the QAchecker dialog area and then the desired options.
The function writes an Excel file in which the results are stored. The path for this is specified under Report. A table is created for each individual activated point.

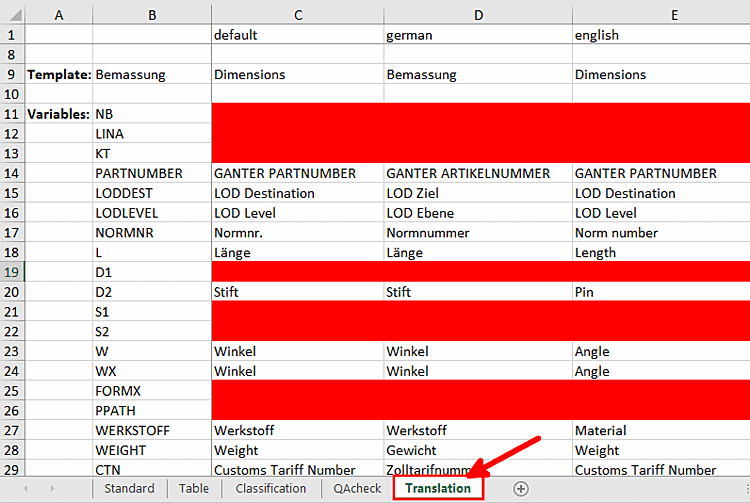

With the Translation option, you can optionally restrict the selection to certain variables in the Variables selection dialog area. Deactivate ALL_VARS and create the desired variables with the plus sign .
The Translation table now only shows the manually created variables in the Variables section.
