to Level [To plane]:
Up to selected level
extrude. [Extrude up to selected plane.]
Extrusion
of a sketch to a selected plane.
There is
only one restriction: The layer must not
intersect the sketch.
How toHow:
Select
"Extrude " or " Cut"
on a sketch.

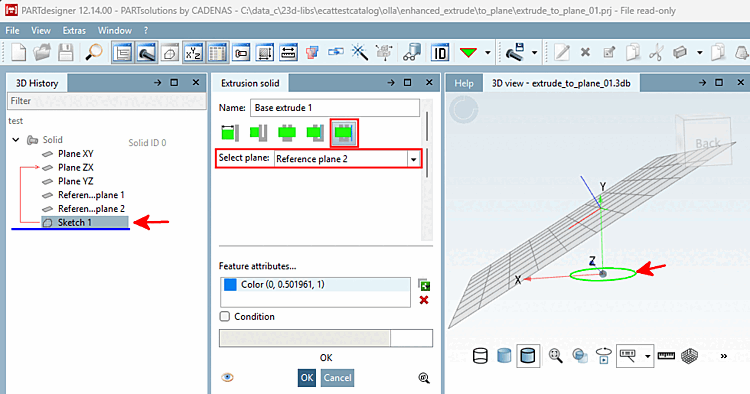

Select
the "To Level [To plane] " method and
select the desired level
from the " Select Level [Select plane]" list box.
Confirm
by clicking OK.
Another example:
Select
" Extrude " on a
sketch element.

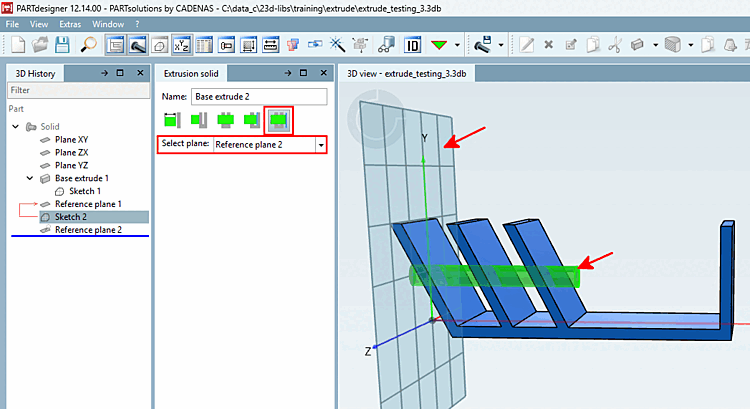

Select
the "Up to"
level [To plane] method.
Select
the desired level
under " Select Level [Select plane]."
Confirm
by clicking OK.
