6.2.3.  Toolbar

6.2.3.1. Model shading
6.2.3.2. Model rotation
6.2.3.3. Virtual reality
6.2.3.4. Additional functions

In the default state, the toolbar shows the main functions.

[Note]Note

The display of the functions depends on the context. For example, if a part does not contain any dimensions [Dimensionings], the corresponding function for showing and hiding is not displayed. The exploded view [Exploded view] function is not displayed for individual parts, etc.

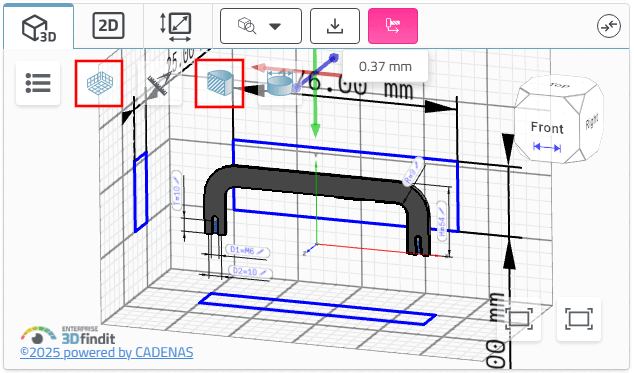

  • The figure shows the measurement grid [Measuring grid] and section [Cut] .

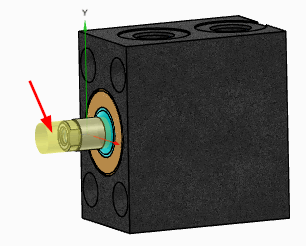

    Section [Cut] : Click on the corresponding axis (green, red, blue) that you use to move the section want.

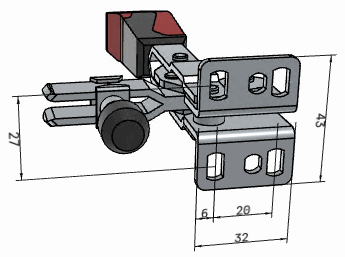

  • Dimensions Show [Show Dimensionings] : Don't show all views Dimensions.

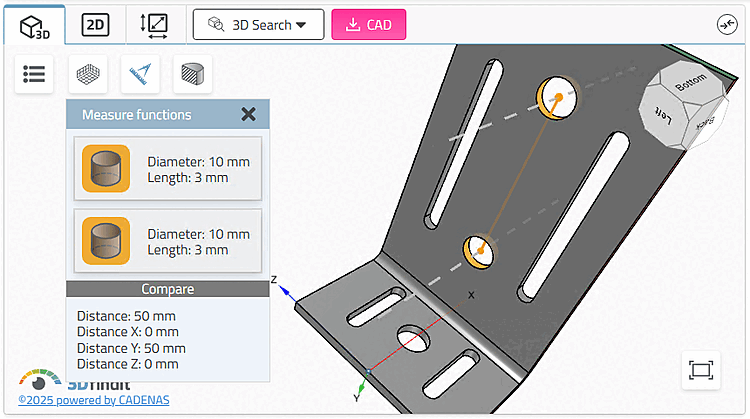

  • Measuring tool [Measure functions] : Choose up to two Topologies to view their dimensions [Select up to two topologies to display their measurements]

  • Show auxiliary geometry :

By clicking on the first button on the left, further buttons/functions.
