2.1.7.6.7.  Define section cut...

The cutting plane can optionally be highlighted with a hatched plane. The settings for this can be found under Settings > 3D Settings [3D settings] > Hatch Cutting Plane [Hatching cut plane]. See Section 1.3.5.4.6, “ Hatch-Cut Plane ” in ENTERPRISE 3Dfindit (Professional) - Administration.

In the 3D view, define a sectional cut with the desired offset to zero plane.

Call

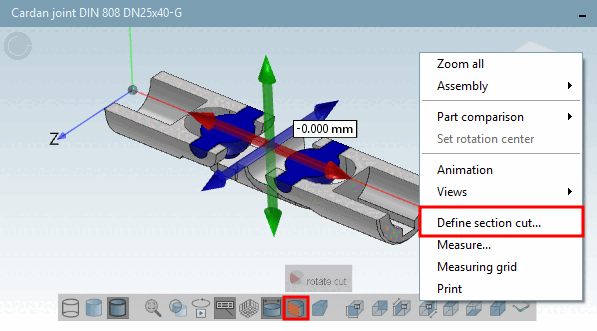

Click on the corresponding button in the toolbar or alternatively on the command Define section plane [Define section cut...]... command in the context menu of the 3D window.

Settings Options

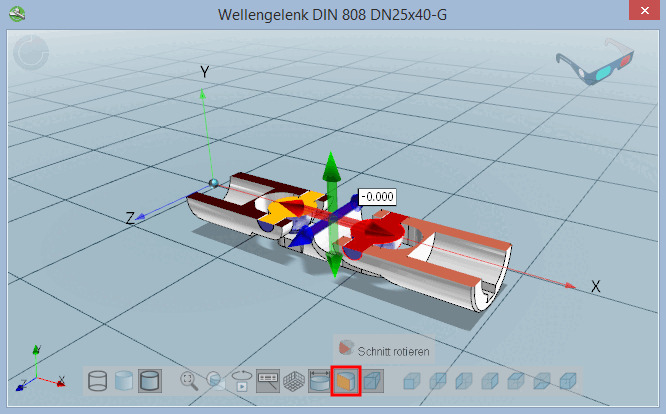

After calling the section cut a navigation cross with 6 arrows is displayed.

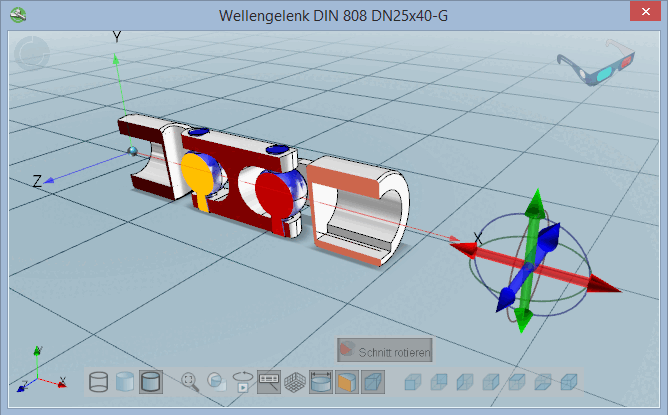

  • Choose a sectional plane by clicking on the respective arrow.

    -> The cut is adjusted at once.

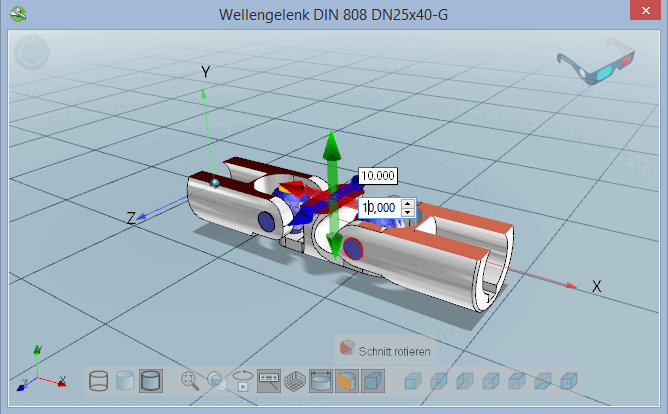

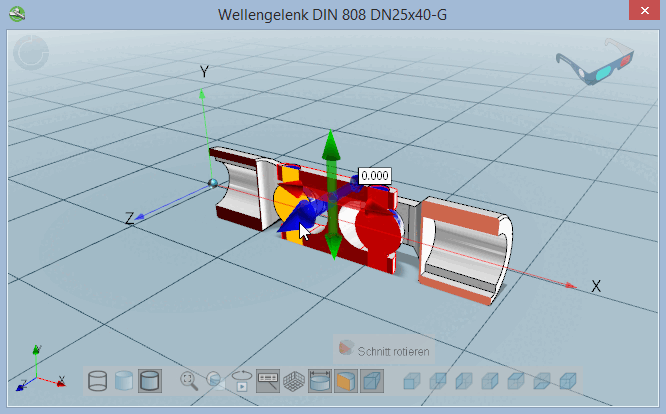

  • Move the sectional plane with pressed mouse key or by entering the desired value in the input field or via arrow key in the input field.

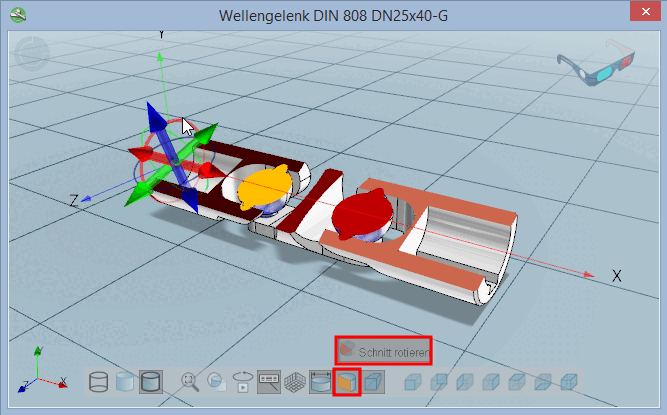

  • After clicking on the Rotate section [rotate cut] button, additional rotation lines are displayed on the navigation cross.

    Click on the desired line and rotate the cut.

[Tip]Tip

At first push the navigation cross to the side and then perform cutting operations.
