Start Teamcenter/NX.

Click File -> New -> Item.

Note For this test, use an assembly provided by the customer.

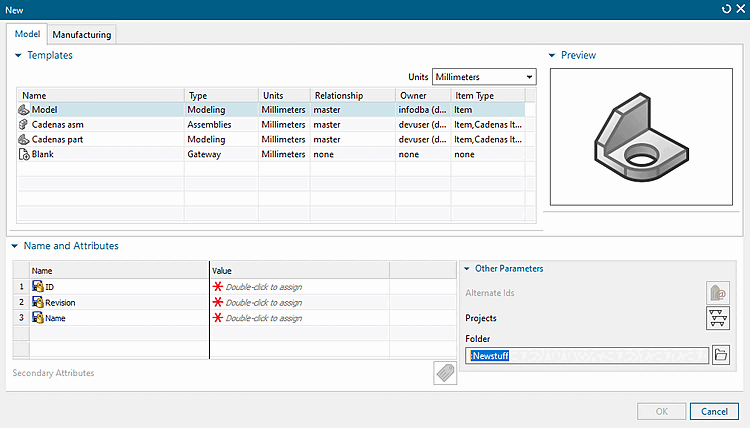

In the New dialog box, on the Tabbed page, under Templates, select a simple template (in this example, "Model").

NX > Tabbed page for Model

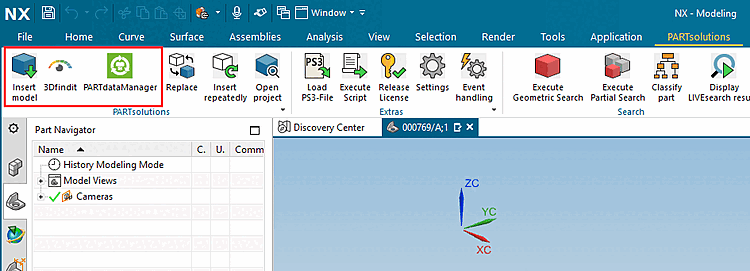

Launch PARTdataManager or 3DFind.it.

3Dfindit in NX

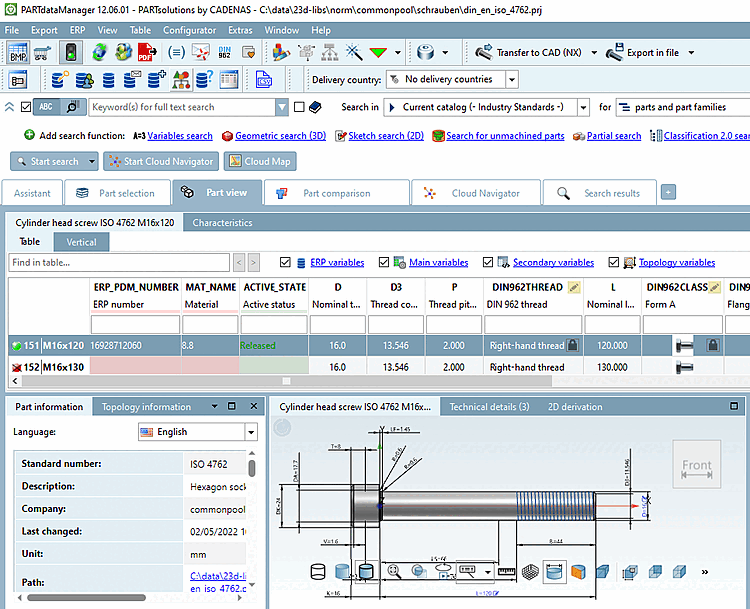

Select the part and click " Transfer to CAD" .

Transfer to CAD

-> The view switches to NX.

Place the part in NX.

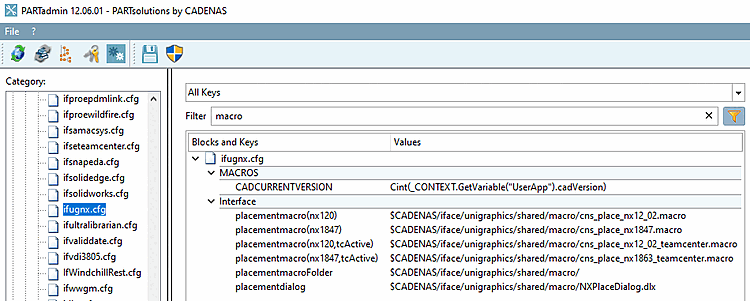

Note For correct placement, Macros needed. The macros are below $CADENAS/iface/unigraphics/shared/macro and must be ifugnx.cfg > Block [Interface] be specified. If problems arise, customer environments may require adjustments using special version-specific macros. Key "placementmacro"

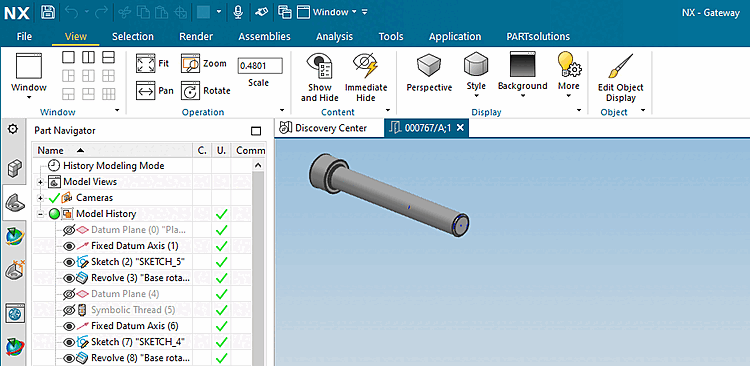

CAD document

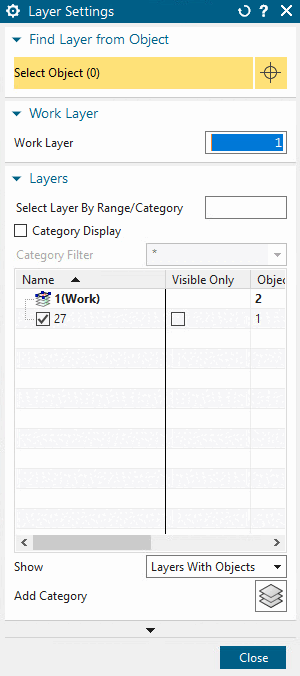

If the component is placed correctly but is not visible in the 3D view, press Ctrl+L to open the Layer Settings and enable Layer 27. (Assemblies are placed on Layer 27, which is hidden by default.)

Layer Settings

Switch to Teamcenter.

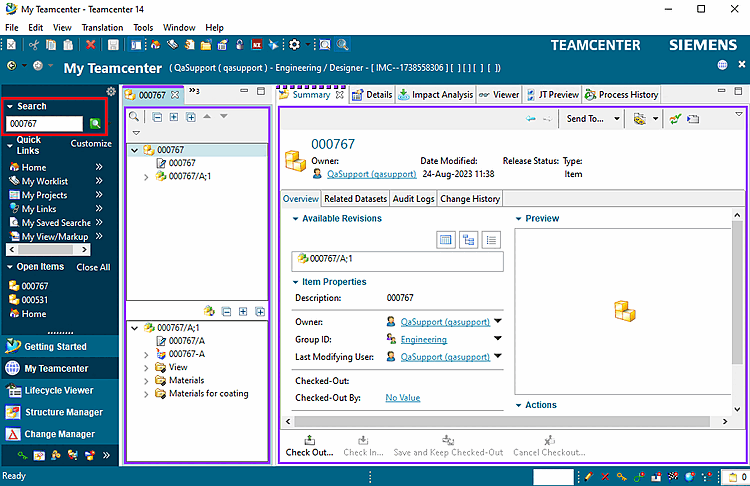

Search for the item ID.

My Teamcenter

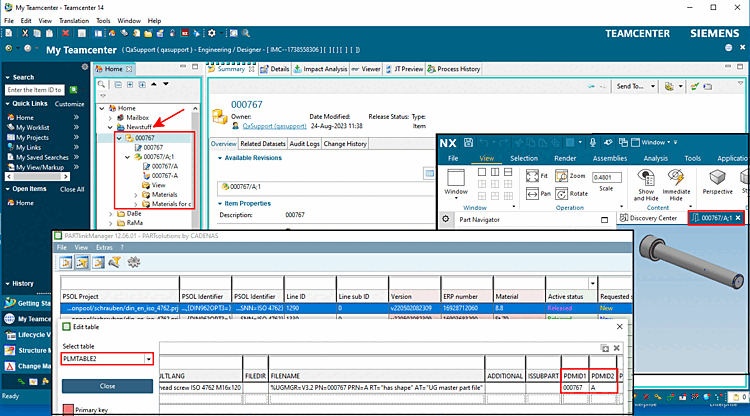

Check whether the document is stored in Teamcenter^[65] and whether it is listed in PLMTABLE2.

Open PLMTABLE2 in PARTlinkmanager via the Tools menu -> Database -> Edit Additional Tables.

Document in Teamcenter
