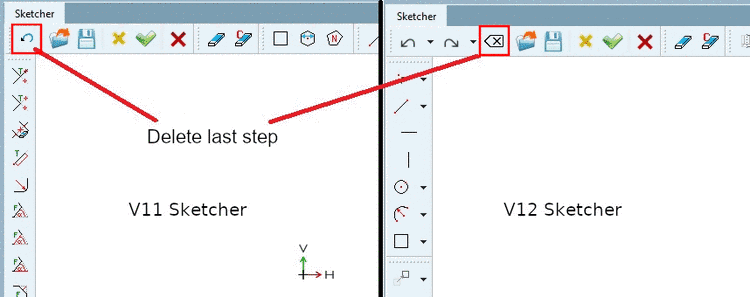

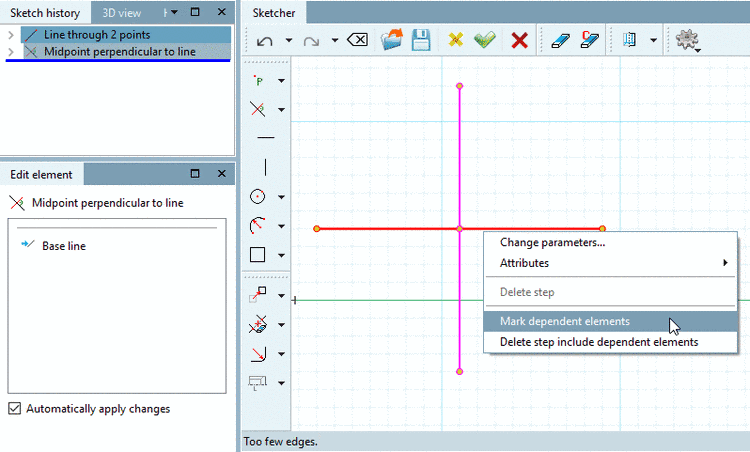

Delete Selected Step [Delete selected step]

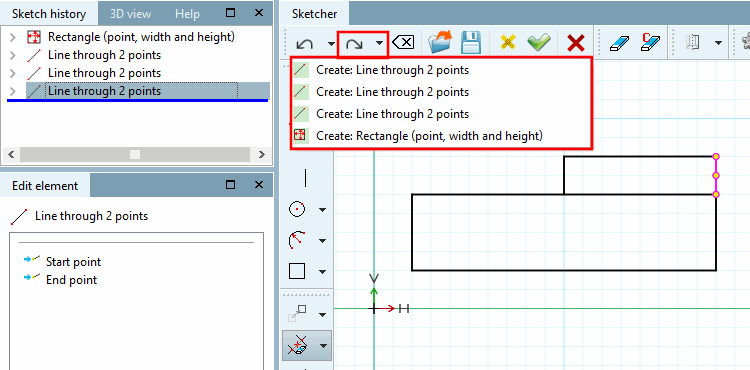

Undo and Restore

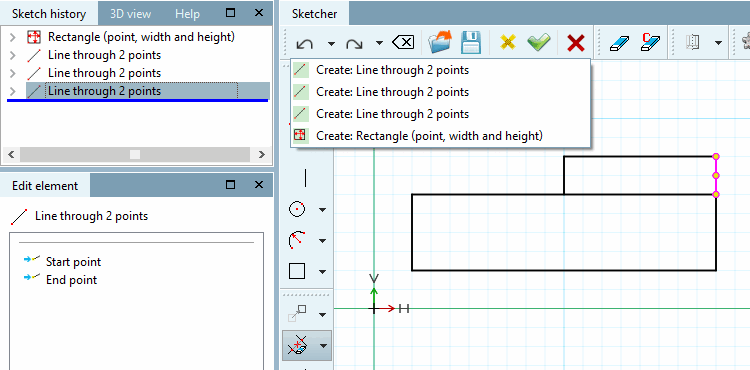

In both buttons there is a list field integrated, which shows the possible steps. When clicking on a list item you will automatically jump to the corresponding state and so possibly save dozens of single steps. (The last step is on top.)

Note After clicking on Apply changes [Accept changes], the History in the list fields below the buttons completely emptied. In other words, only the steps of the current session can be withdrawn or withdrawn. be restored.

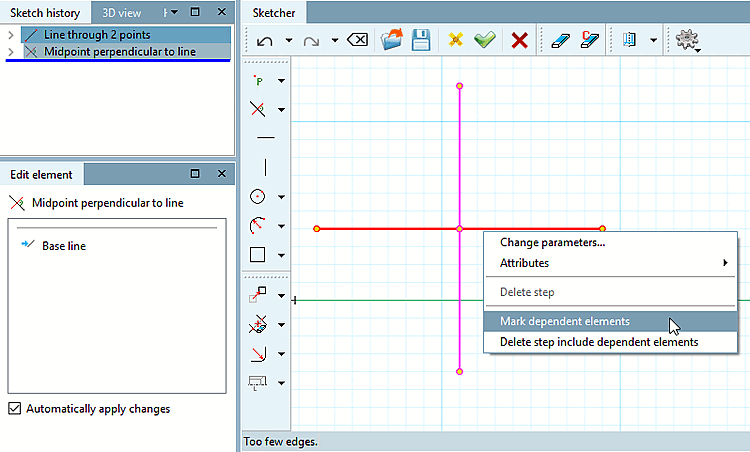

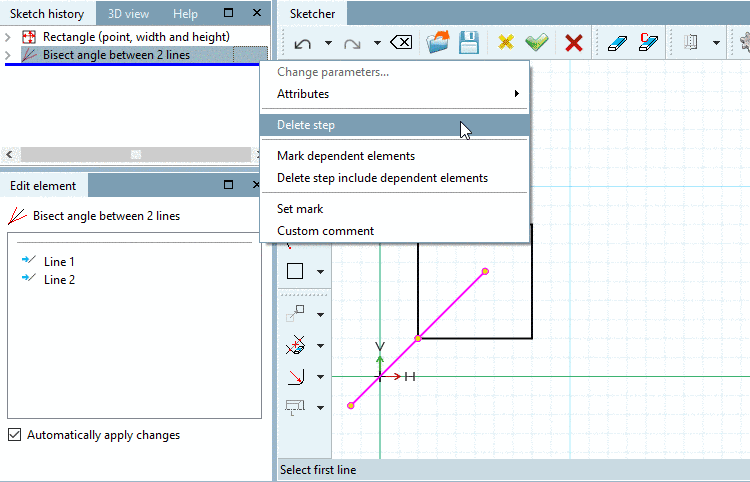

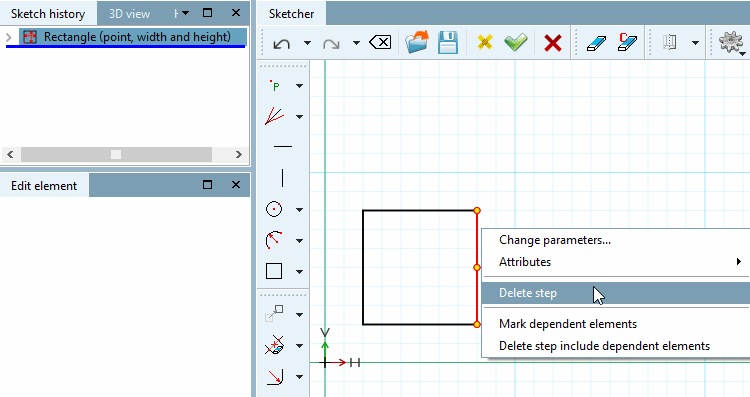

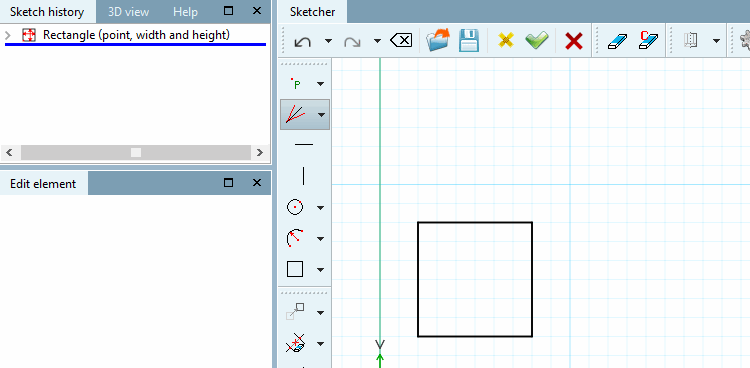

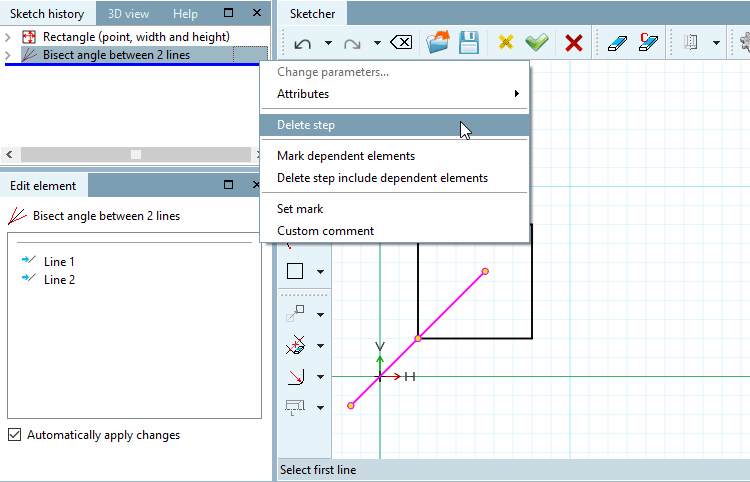

Deleting: There are many different ways to do this: See Section 7.9.3.3, “Delete ”.

Import sketch

With this command you can insert a sketch in the currently opened one or replace the current one. These sketches may have been created either...

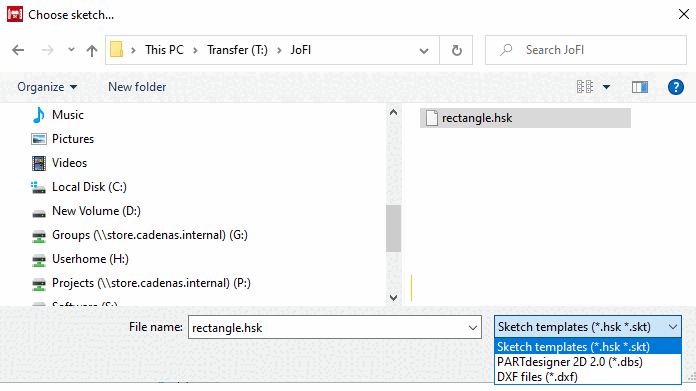

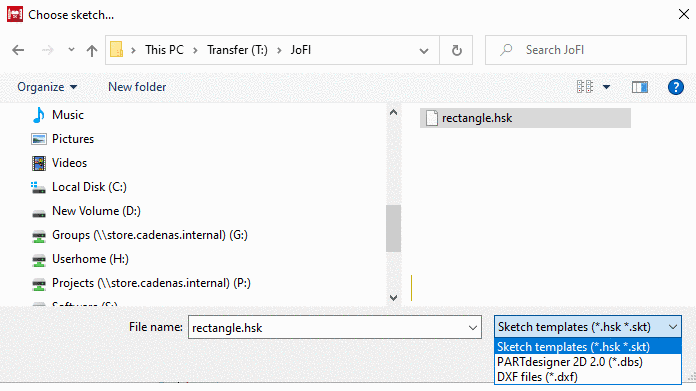

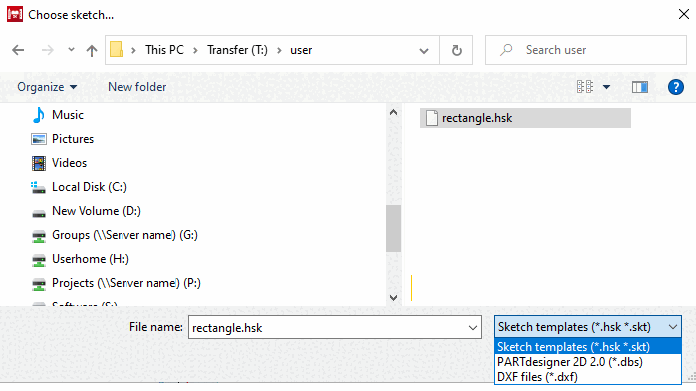

Select the desired file in the Select sketch [Choose sketch...] dialog box.... [Choose sketch...]

Depending on the file type the respective window is opened (see Section 7.9.3.2.1, “ Insert sketch" dialog box (*.dbs, *.skt or *.hsk files) ”) or Section 7.9.3.2.2, “ DXF import " dialog box (*.dxf file) ”.

Repair DXF import

On this see Section 7.9.3.2.2, “ DXF import " dialog box (*.dxf file) ”.

Save sketch: Click on the button to open the dialog box of the same name.

You can save sketch templates (*.hsk) and 2D drawings (*.2db) and load them again later with Import Sketch [Import sketch] (see above).

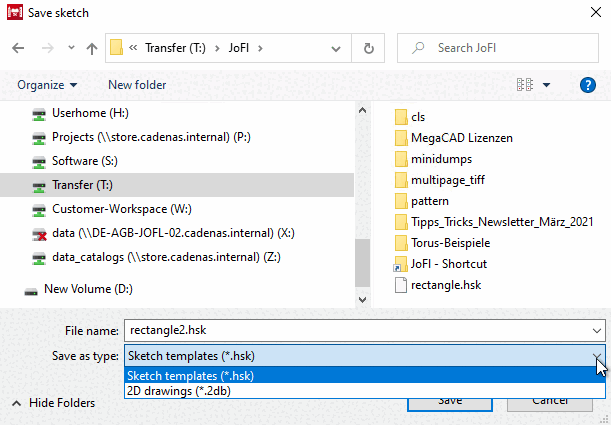

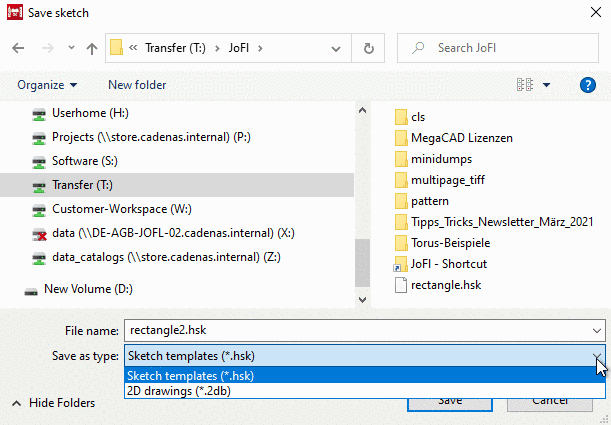

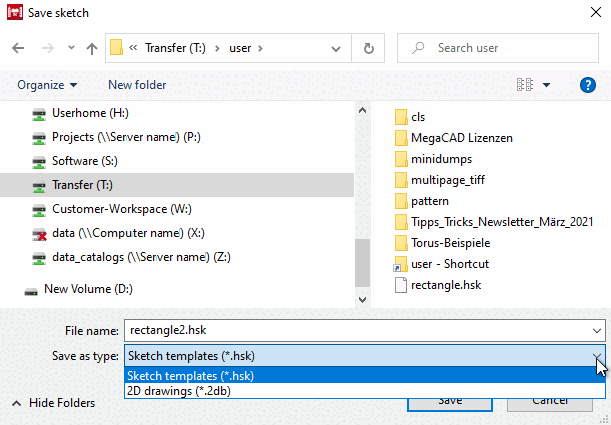

Save sketch " dialog box

Accept changes

The changes made since the sketch was opened are saved and the sketcher is closed.

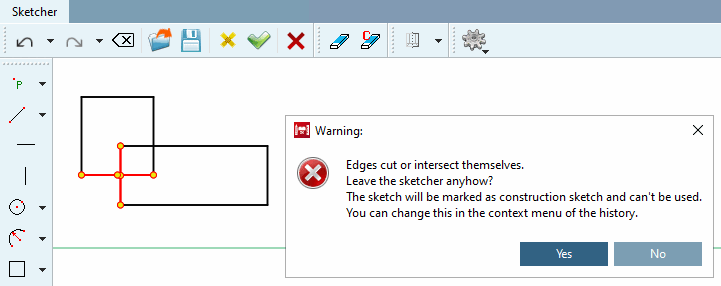

If there is an error in the sketch, the following warning is displayed. You can leave the sketcher anyway. Then the sketch is marked as auxiliary sketch and cannot be assembled.

Edges intersect or touch each other. [Edges cut or intersect themselves.] [...] The sketch is then marked as an auxiliary sketch and cannot be installed [The sketch will be marked as construction sketch and can't be used.]

If before a 3D model had been created, saving is not possible. In any case, correct the error.

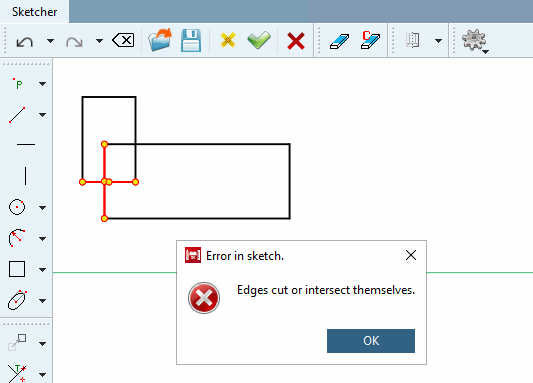

Edges cut or intersect themselves.

Discard changes

The changes made since the sketch was opened are not saved.
